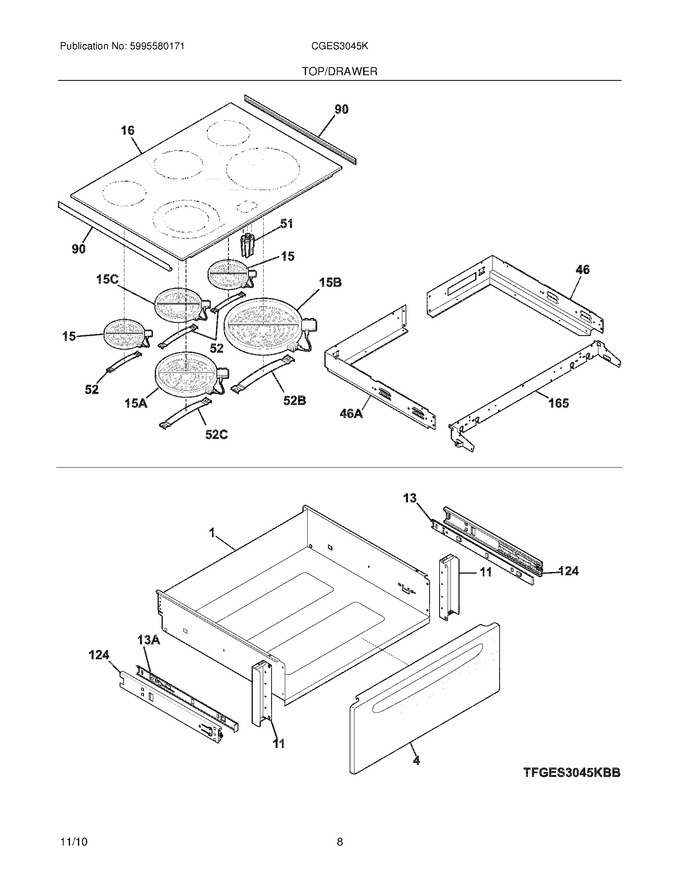

07 - Top/drawer


09 - Door


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107317		Drawer   (Replaces: 318107313)				$ 144.09
4	318298908		Panel,drawer ,black ,front				$ 131.93
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318259504		Glide,warmer ,inner Rh				$ 29.49
16	318916903		Smooth Top,assembly ,glass/steel ,black				$ 575.30
46	318568200		Box,burner ,rh				$ 23.99
52	318122006		Spring,element Mtg ,small				$ 66.25
90	318368001		Channel,glass Protector ,(2)				$ 22.98
124	318330600		Glide,drawer ,outer/rh & Lh ,(2)				$ 77.97
165	318913300		Deflector,box ,front				$ 48.67
13A	318259505		Glide,warmer ,inner Lh				$ 33.03
46A	318568201		Box,burner ,lh				$ 28.93
52B	318122011		Spring,element Mtg ,1200w/1800w				$ 62.14
52C	318122010		Spring,element Mtg ,3000w				$ 62.51
F15	318178110		Element,surface ,6`` ,1200w ,(2) ,radiant   (Replaces: 318198830)			Immediately	$ 122.86
F15A	5304533520		Element,surface ,6``/9`` ,1400/3000w ,radiant   (Replaces: 316465002)			Immediately	$ 90.14
F15B	316291200		Element,surface ,12`` ,2700 W   (Replaces: 318198827)			Immediately	$ 235.31
F15C	318198843		Element,surface ,warm Zone ,100w ,radiant				$ 206.01
F51	318044831		Light,indicator ,natural ,(4)				$ 16.69
FNI	318228971		Harness,wiring ,cooktop		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
