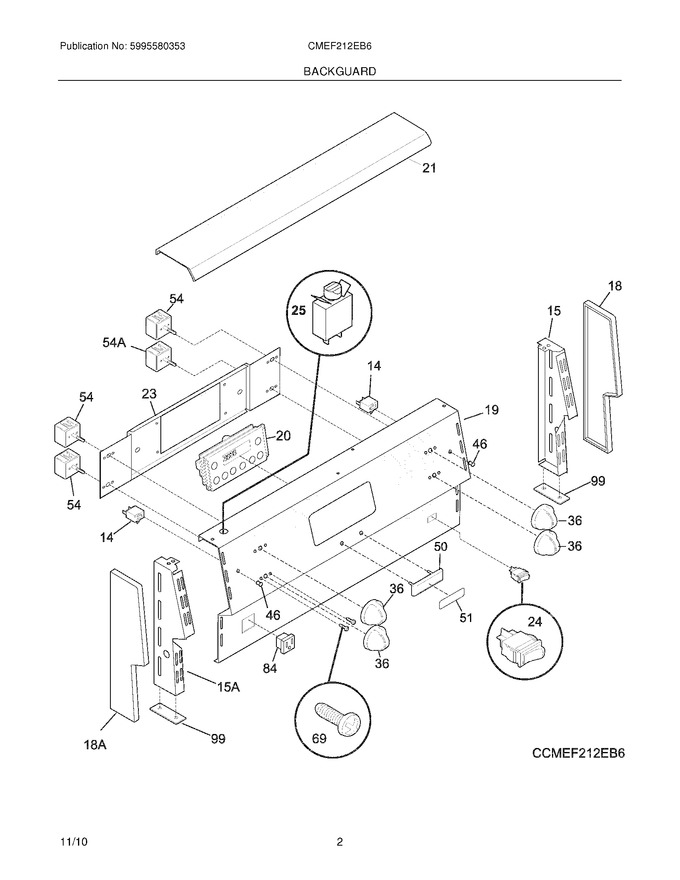

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303304000		Bracket,end Cap Mtg. ,rh				$ 7.14
18	318254500		End Cap,black ,rh		Appelez-nous	-
19	318576809		Panel,control ,black		Appelez-nous	-
21	318350800		Trim,canopy ,black ,backsplash Top				$ 107.52
23	318256002		Bracket,clock Mtg		Appelez-nous	-
36	318017106		Knob,control ,black				$ 62.74
46	318044511		Lens,indicator Light			Immediately	$ 25.66
50	318146602		Frame,nameplate ,black				$ 5.40
51	318337901		Nameplate,black ,frigidaire				$ 21.06
69	5304453272		Screw,mtg. ,no.8-32 X 1/4``		Appelez-nous	-
84	318146827		Outlet,electrical ,black ,combined				$ 12.21
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
15A	5303304001		Bracket,end Cap Mtg. ,lh				$ 5.62
18A	318254501		End Cap,black ,lh		Appelez-nous	-
F14	318369501		Lamp,indicator			Immediately	$ 67.62
F20	318326216		Clock/timer,electronic ,black ,es100				$ 165.64
F24	318037515		Switch,rocker ,black ,oven Light				$ 60.96
F25	316508400		Switch,circuit Break				$ 106.32
F54	318293810		Switch,surface Element ,small			Immediately	$ 100.17
F54A	318293811		Switch,surface Element ,large			Immediately	$ 88.67
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	318214409		Overlay,clock ,black				$ 47.67
NI	5304480779		Adapter,terminals ,breaker		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
