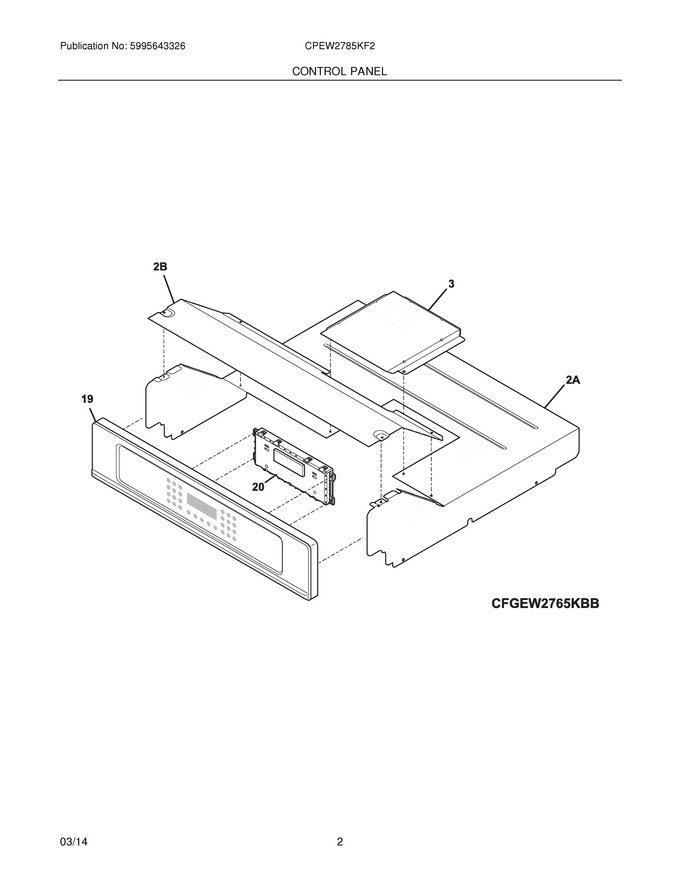

03 - Control Panel
05 - Body
07 - Door
08 - Wiring Diagram
09 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577800 | Box,fan Service |
|
- | |||||
| 2A | 318257306 | Shield,oven Top |
|
- | |||||
| 2B | 318260105 | Cover,box |
|
- | |||||
| F19 | 318575132 | Panel Assembly,control ,stainless ,w/overlay-trim |
|
$ 277.62 | |||||
| F20 | 316462867 | Clock/timer,electronic ,es530w2 |
|
Immediately | $ 365.53 | ||||
| NI | 5304436875 | Screw,8-18 X 1/2 ,black ,(3) |
|
$ 14.41 | |||||
| NI | 316519700 | Screw,no.8-18 X 3/8 (Replaces: 5304454881) |
|
$ 10.02 | |||||
| NI | 5303311306 | Screw,8-18 X 0.375 ,(4) |
|
- |
