SELECT A DIAGRAM

01 - Cover


03 - Oven,cabinet

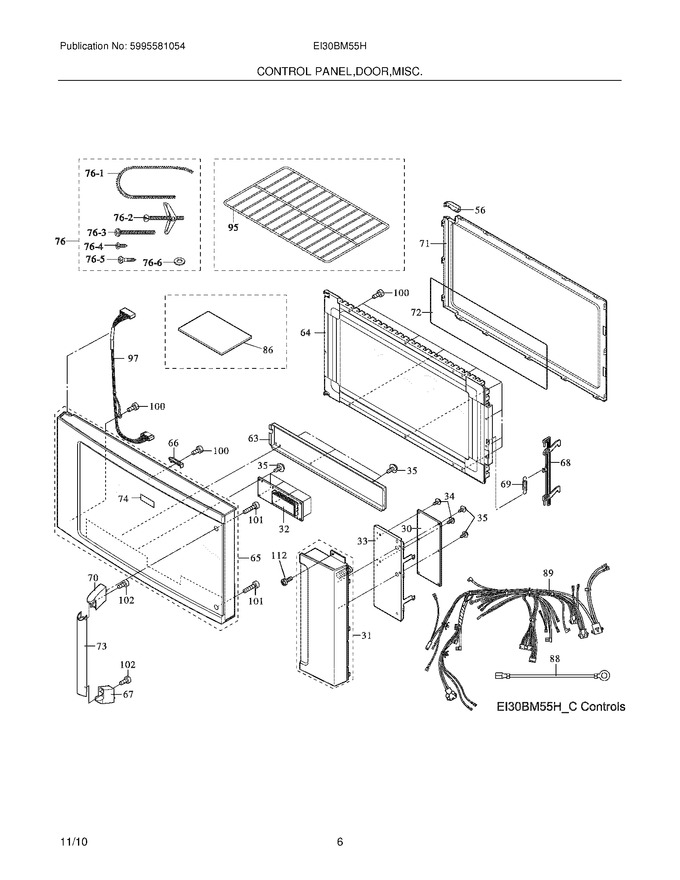

05 - Control Panel,door,miscellaneous


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	5304467785		Cover,power Unit ,white ,rs		Appelez-nous	-
33	5304467787		Panel,control Mount				$ 37.24
34	5304467710		Screw,3 Mm X 8 Mm				$ 14.18
35	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
56	5304463156		Door Stop				$ 32.56
63	5304481349		Cover,control Display				$ 82.65
64	5304481350		Panel,inner Door ,black		Appelez-nous	-
65	5304467792		Frame Assembly,door ,white		Appelez-nous	-
66	5304467794		Clip,glass Retainer ,door				$ 15.96
67	5304467797		End Cap,handle ,white ,lower				$ 18.96
68	5304467798		Latch,door				$ 33.86
69	5304440316		Spring,door Latch			Immediately	$ 61.00
70	5304467801		End Cap,handle ,white ,upper				$ 11.33
71	5304467802		Frame,choke Cover ,inner Door				$ 89.85
72	5304467803		Seal,door ,film				$ 24.53
73	5304467806		Handle,door ,white				$ 120.90
74	5304467809		Badge,nameplate ,white		Appelez-nous	-
76	5304464349		Hardware Kit,installation   (Replaces: 5304467765)			Immediately	$ 57.11
86	5304481351		Template,installation ,wall				$ 16.78
86	5304467832		Template,installation ,top				$ 19.52
95	5304463180		Rack,microwave Oven ,wire				$ 123.33
100	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
101	5304467810		Screw,4 Mm X 30 Mm				$ 64.12
102	5304467780		Screw,4 Mm X 8 Mm ,tap Tight				$ 13.46
112	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
F30	5304481345		Control Board,printed Circuit				$ 291.03
F32	5304467786		Display,time ,digital				$ 234.60
F76-	5303318762		Screw,toggle				$ 11.71
F76-	5304481344		Screw,machine				$ 12.68
F76-	5304502863		Screw,4 Mm X 8 Mm ,silver   (Replaces: 5304451552)				$ 10.85
F76-	5304453723		Screw,5mm X 35mm				$ 13.28
F76-	5304453724		Washer				$ 12.68
F76-	5303318761		Sleeve,power Cord ,grommet				$ 25.05
F88	5304467828		Wire,ground		Appelez-nous	-
F89	5304467829		Wiring Harness,main				$ 124.22
F97	5304467830		Wiring Harness,control-a ,w/ground Wire				$ 109.16

    View Diagram in Separate Window       Print Part List
