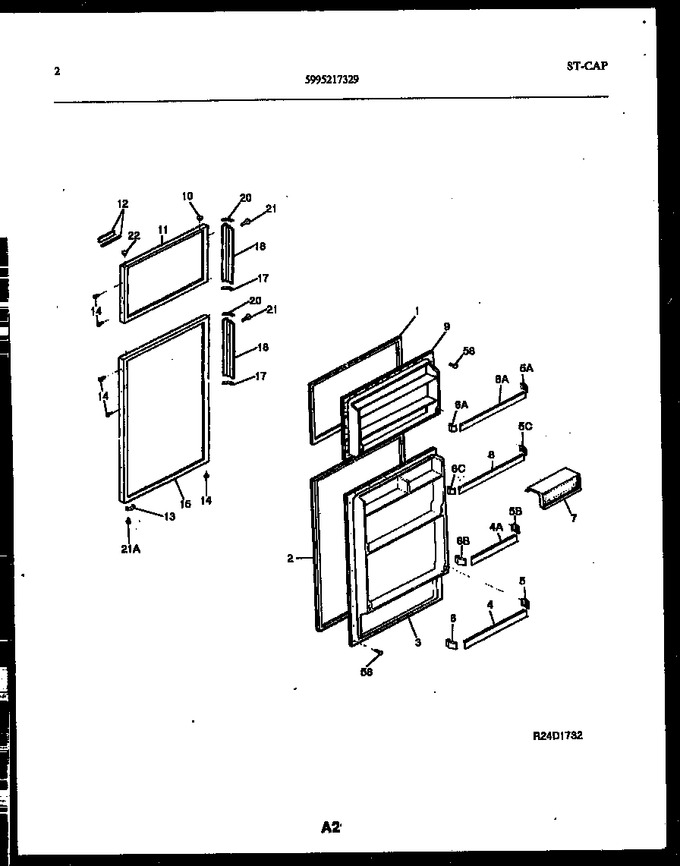

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001304		Gasket-frzr Door, Magnetic		Appelez-nous	-
2	5303017373		Gasket-refr Door, Magnetic		Appelez-nous	-
3	5303284098		Panel-inner Door, Refr		Appelez-nous	-
4	5303272143		Rack-door, Wide		Appelez-nous	-
5	3206150		Support, Door Rack, Rh				$ 12.58
6	3206151		Support-door Rack, Lh		Appelez-nous	-
7	5303276149		Door-dairy		Appelez-nous	-
8	5303272150		Rack-door, Wide, Frzr		Appelez-nous	-
9	5303276335		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303916965		Panel-frzr Door, Almond		Appelez-nous	-
12	5303276130		Frame-nameplate, W/ Tape		Appelez-nous	-
13	5308000255		Door Stop, Frzr/refr				$ 42.20
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303916980		Panel-refr Door, Almond		Appelez-nous	-
17	5308010238		Handle End		Appelez-nous	-
18	5308009875		Handle-door, Teakwood Vinyl, Refr/frzr, (2)		Appelez-nous	-
4A	5303276155		Rack-door, Narrow, Short		Appelez-nous	-
5A	3206165		Support-door Rack, Rh			Immediately	$ 8.19
5B	3206156		Support-door Rack, Rh		Appelez-nous	-
5C	3206161		Support-door Rack, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Lh			Immediately	$ 9.93
6B	3206157		Support-door Rack, Lh		Appelez-nous	-
6C	3206162		Support-door Rack, Lh		Appelez-nous	-
8A	5303272149		Rack-door, Narrow, Frzr		Appelez-nous	-
