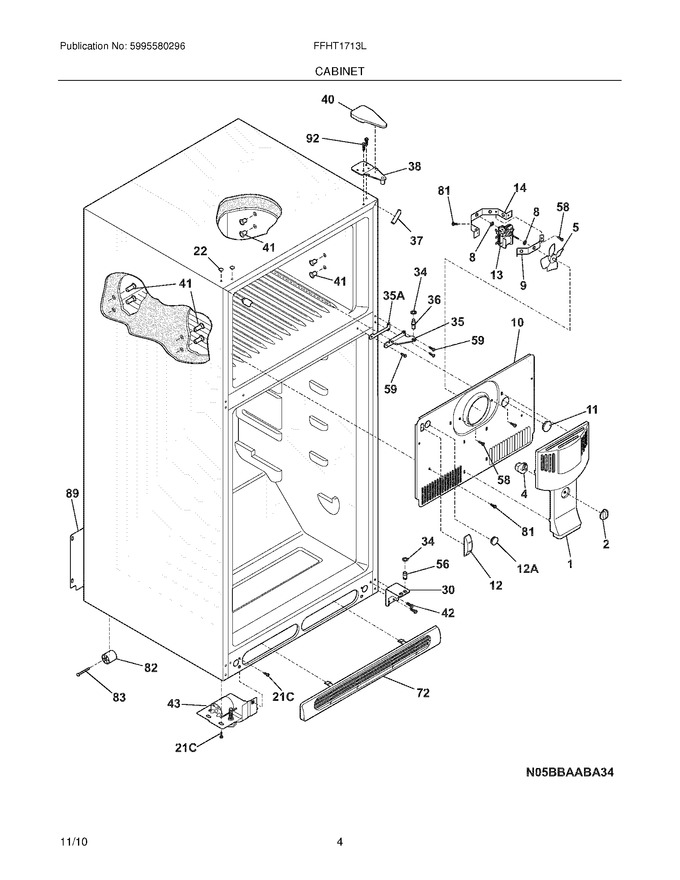

05 - Cabinet


07 - Shelves


09 - System


10 - Wiring Schematic


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241652306		Cover-fan		Appelez-nous	-
2	240367001		Knob-damper Control			Immediately	$ 57.64
4	241523701		Damper-fan Cover				$ 19.16
8	240438003		Bushing-motor Mtg,(2)   (Replaces: 242014101)				$ 17.44
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	241652215		Cover-evap Coil				$ 76.76
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	242193602		Plug-ice Maker Harness,rectangular   (Replaces: 241557601)				$ 14.41
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
22	215774901		Plug-button,white ,upr Hinge Holes			Immediately	$ 18.20
30	240357106		Bracket-lower Hinge				$ 44.78
34	240311303		Washer,hinge ,nylon ,(2)			Immediately	$ 10.62
35	240357006		Bracket-ctr Hinge				$ 46.67
36	240516402		Pin-center Hinge		Appelez-nous	-
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.09
38	240356903		Bracket-upper Hinge				$ 25.41
40	240354401		Cover-upper Hinge,white				$ 61.56
41	5304500407		Grommet,shelf Mtg ,1.25`` ,lh ,(4)   (Replaces: 5308009759)			Immediately	$ 6.38
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
43	241889002		Roller Assy,front Lh ,(2)				$ 63.08
56	240516502		Pin-lower Hinge				$ 72.80
58	5304456287		Screw,hex Washer Head ,8-15a X 0.500				$ 0.76
59	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
72	240368301		Grille/kickplate,white			Immediately	$ 69.46
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
89	241733906		Cover-access,with Label				$ 51.17
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
12A	240374401		Plug-wtr Inlet Tube,round ,1``				$ 12.15
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
35A	240336802		Spacer-hinge,center			Immediately	$ 18.43
F12A	241586701		Plug-foam-wtr-inlet,round				$ 17.72
F13	241854301		Motor-fan			Immediately	$ 190.51
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
NI	5303321319		Paint,touch-up ,white			Immediately	$ 13.46
NI	218515401		Clip-grille				$ 17.72
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
NI	5304434189		Seal-coil Cover   (Replaces: 240568601)				$ 66.63
NI	241889001		Roller Assy,front Rh ,(2)				$ 64.46
NI	241500305		Screw,hex Washer Head ,8-18ab X 0.625   (Replaces: 241500304)				$ 3.03
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 18.20
NI	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 15.17
