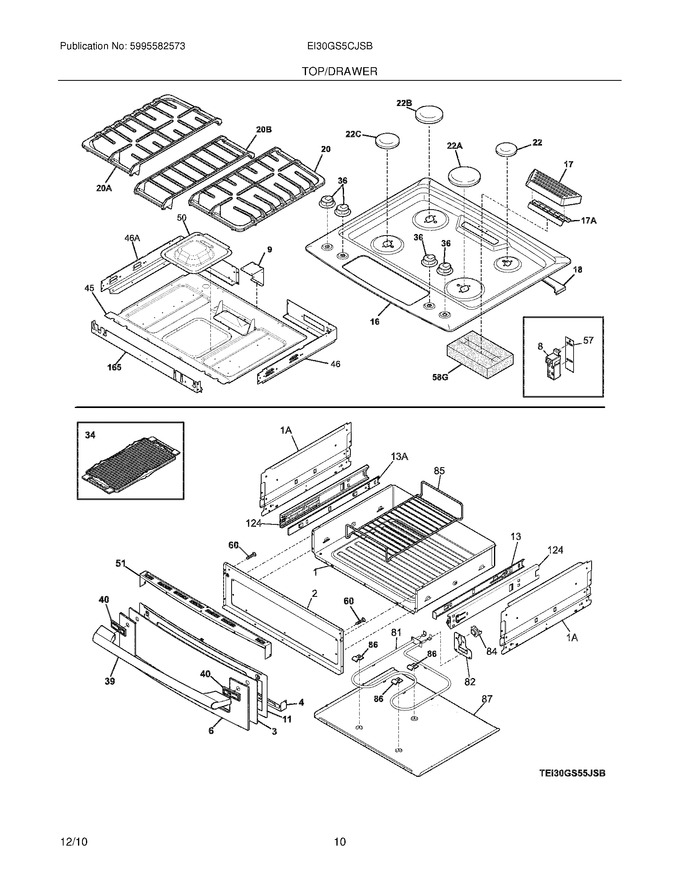

09 - Top/drawer


11 - Door


12 - Wiring Diagram


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304405		Drawer,body Assembly				$ 248.01
2	318391205		Panel,drawer ,inner		Appelez-nous	-
3	318904405		Glass,drawer ,black ,outer				$ 262.34
4	318904903		Trim,door ,black ,lower				$ 31.87
6	318377914		Trim,front ,stainless		Appelez-nous	-
9	318905500		Support,maintop		Appelez-nous	-
11	318385701		Frame,drawer ,outer				$ 343.25
13	318259509		Glide,warmer ,inner Rh				$ 26.25
16	318536537		Maintop Assembly,stainless ,w/support ,w/graphics				$ 310.13
17	318905403		Cover,flue ,black		Appelez-nous	-
18	318906900		Support,deflector Box				$ 37.47
20	318909206		Grate,burner ,black ,rh				$ 310.17
22	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
34	316534001		Griddleoptional Access0ry				$ 213.34
36	318905202		Knob,burner ,stainless ,(3)				$ 114.35
39	241881302		Handle,door ,stainless				$ 226.24
40	318902902		Spacer,handle ,grey ,(2)				$ 53.76
45	318578701		Panel,burner Box ,bottom		Appelez-nous	-
46	318568200		Box,burner ,rh				$ 23.99
50	318578801		Panel,service ,fan		Appelez-nous	-
51	318904701		Trim,door ,black ,upper				$ 73.76
57	318295611		Panel,service				$ 15.12
60	5304477736		Screw,machine ,10-24x29/32 ,(2)		Appelez-nous	-
82	318304500		Bracket,element ,warmer Drawer				$ 11.29
85	807328301		Rack,warmer Drawer   (Replaces: 318345601)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318300102		Panel,warmer Drawer ,lower				$ 106.22
124	316105501		Glide,outer/rh & Lh ,(2)				$ 90.72
165	318568300		Front Panel,burner Box		Appelez-nous	-
13A	318259508		Glide,warmer ,inner Lh				$ 27.88
17A	318907401		Cover,flue		Appelez-nous	-
1A	318300003		Panel,warmer Drawer ,side ,(2)				$ 56.13
20A	318909207		Grate,burner ,black ,lh				$ 252.74
20B	318909403		Grate,burner ,black ,center				$ 257.24
22A	5304508468		Cap,burner ,17k ,black   (Replaces: 316262104)				$ 49.45
22B	5304508443		Cap,14k Burner ,black   (Replaces: 316262004)			Immediately	$ 46.01
22C	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
46A	318568201		Box,burner ,lh				$ 28.93
58G	318594402		Insulation,flue   (Replaces: 318285099)				$ 245.64
F8	808608802		Module,spark   (Replaces: 316262401)			Immediately	$ 82.93
F81	318255301		Element,warmer Drawer				$ 105.42
F84	318005108		Thermostat			Immediately	$ 81.14
FNI	318199748		Wiring Harness,drawer				$ 35.86
FNI	318532147		Ground Wire,w/terminal		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	318403105		Bracket,bridge ,(2)   (Replaces: 318403102)				$ 49.62
NI	5304500008		Screw,10-24 X 1.750   (Replaces: 5304416408)				$ 12.13
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
NI	5304463974		Screw,thermostat ,6-20 X 5/8 ,(2)		Appelez-nous	-
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	5304463977		Bumper,base ,(2)				$ 10.28
NI	318531701		Spacer,(2)				$ 12.05
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318534403		Gasket,maintop			Immediately	$ 59.16
