SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

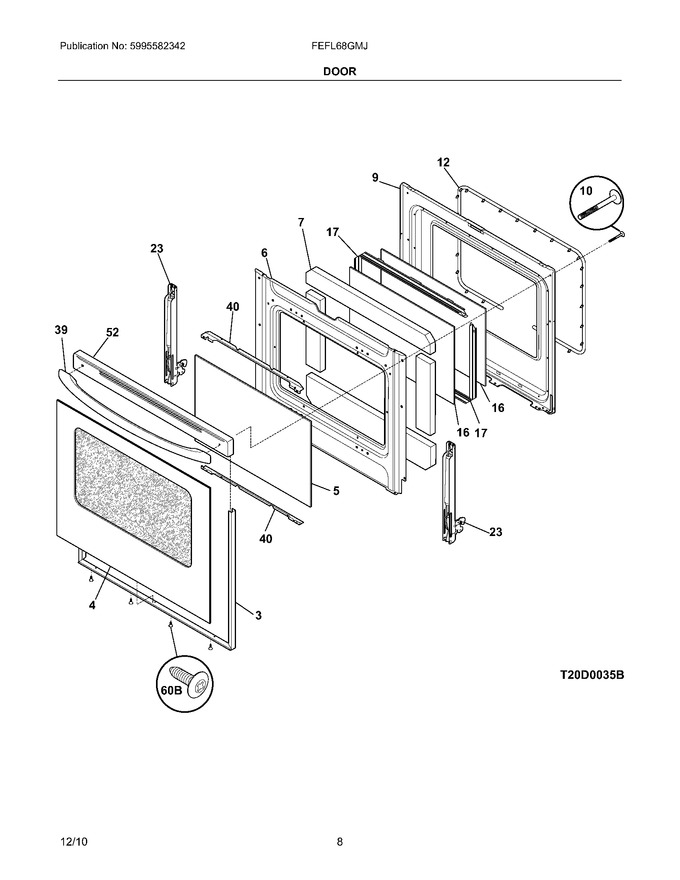

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door,3 Sided ,black ,w/tape   (Replaces: 5303935317)			Immediately	$ 58.12
4	316452811		Door Assembly,glass/overlay ,black/slvr Mist,w/foil				$ 160.70
5	316502601		Glass,door ,airwash   (Replaces: 316502600)			Immediately	$ 207.85
6	316406328		Shield-wool   (Replaces: 316406312)				$ 87.21
7	316405600		Insulation,oven Door				$ 76.55
9	316423701		Liner,oven Door				$ 143.50
10	316433300		Screw,10-14 X 2.125`` ,handle Mtg.			Immediately	$ 27.50
12	316405000		Seal,oven Door			Immediately	$ 179.17
16	5304503232		Glass,oven Door ,inner   (Replaces: 316117503)				$ 116.95
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316559901)			Immediately	$ 25.02
23	316456308		Hinge,oven Door ,gray ,(2)				$ 32.58
39	316270200		Handle,door ,black				$ 136.40
40	316530403		Bracket-airwash Glass Wash				$ 33.18
52	316575501		Cap,door Trim ,black				$ 110.73
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
