SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

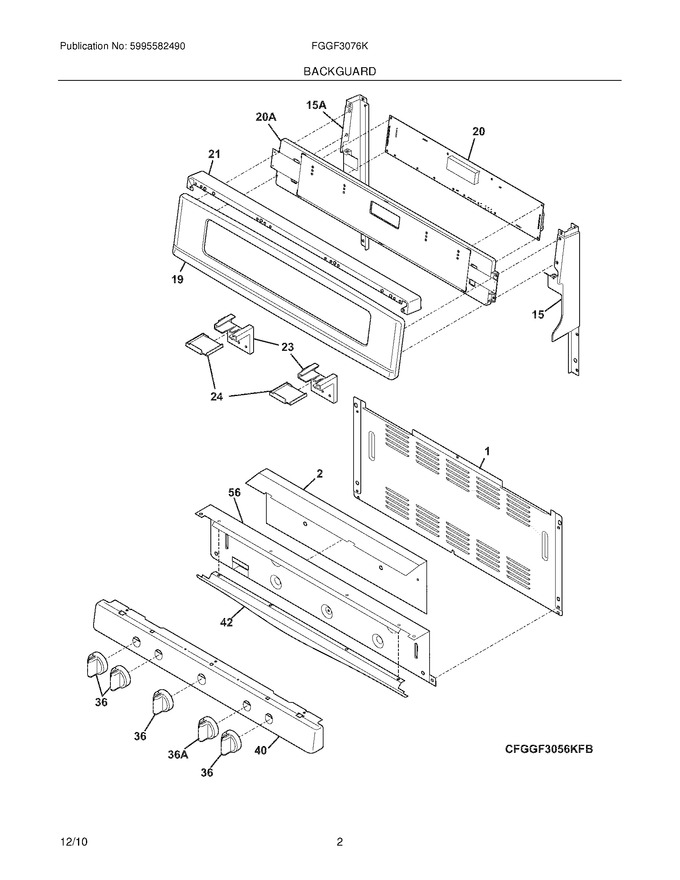

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield,rear Wall				$ 70.04
2	316497600		Shield,backguard ,inner				$ 66.31
15	316546704		Cap,backguard ,white ,rh End				$ 70.35
19	316572400		Panel,backguard ,white				$ 188.21
21	316546606		Cap,backguard ,white ,top   (Replaces: 316546602)				$ 61.85
23	316573700		Bracket,support ,bottom ,(2) ,membrane		Appelez-nous	-
24	316574200		Bracket,support ,top ,membrane				$ 17.64
36	316564509		Knob,top Valve ,stainless ,(5)				$ 131.96
40	316561965		Panel,manifold ,white		Appelez-nous	-
42	316416205		Trim,extrusion ,gray   (Replaces: 316416201)				$ 51.57
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316546713		Cap,backguard ,white ,lh End   (Replaces: 316546705)				$ 48.20
36A	316564506		Knob,top Valve ,stainless ,(1)				$ 104.48
F20	316562003		Controller,electronic ,es1000				$ 682.34
F20A	316549116		Membrane,touch Control ,white ,assembly				$ 330.56
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
