SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


24 - Wiring Schematic


25 - Wiring Diagram

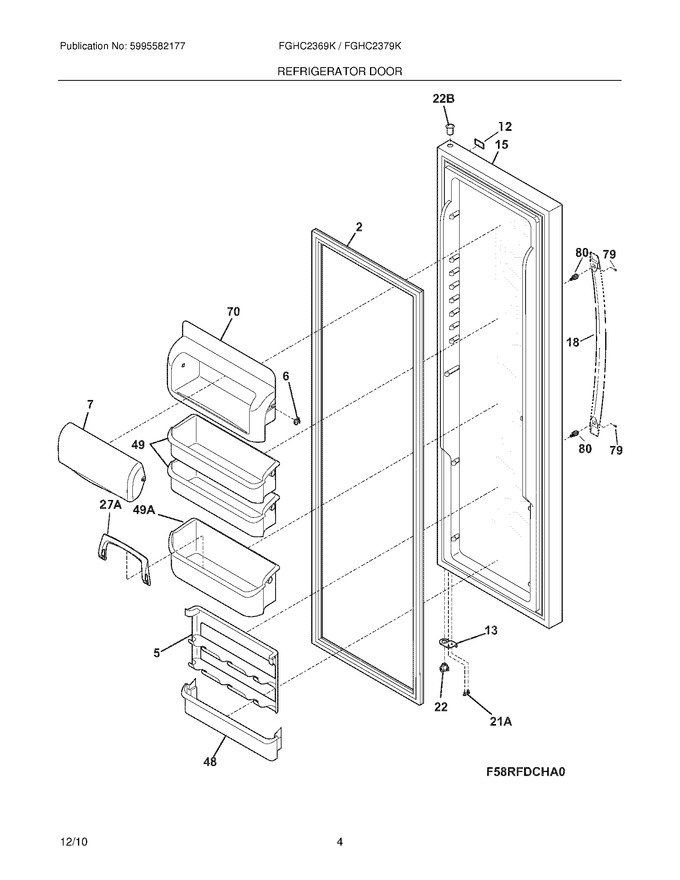

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515606		Door-dairy   (Replaces: 241515601)				$ 40.96
12	242015201		Label-nameplate			Immediately	$ 6.90
13	241942603		Door Stop,black ,ref				$ 20.56
15	241837280		Door-refr,white ,complete Assy		Appelez-nous	-
18	297437820		Handle-door,white ,(2)   (Replaces: 241930102)				$ 111.99
22	241990301		Bearing-hinge,gray				$ 7.09
48	241511701		Bin-door,ref   (Replaces: 241808224)			Immediately	$ 67.21
49	241505301		Bin-door,2 Liter   (Replaces: 241808222)			Immediately	$ 76.40
70	241515801		Compartment-dairy,removable				$ 177.89
79	218755405		Screw-set,10-32 X 0.650   (Replaces: 218755408)			Immediately	$ 20.56
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	241760403		Bearing,hinge ,top			Immediately	$ 19.13
27A	241812702		Retainer,tall Bottle				$ 18.38
49A	241505501		Bin-door,gallon ,w/trim   (Replaces: 241808223)			Immediately	$ 99.03
F2	241510201		Gasket-refr Door,white ,magnetic			Immediately	$ 222.14
F49A	241780003		Liner,bin ,gallon				$ 82.93
NI	241779903		Liner,bin ,2 Liter				$ 74.42

    View Diagram in Separate Window       Print Part List
