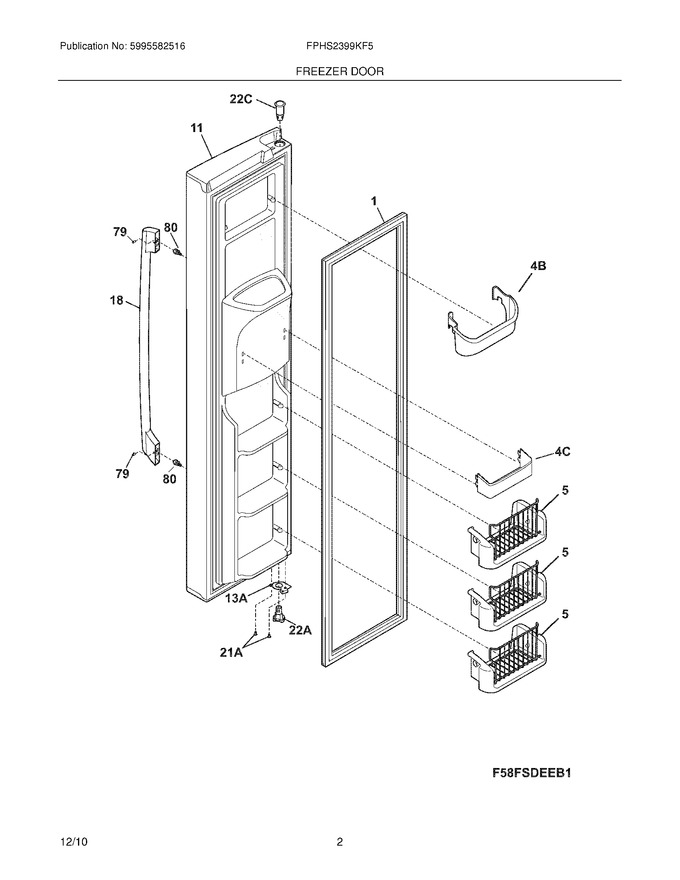

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 241545004 | Bin-tilt Out,tilt-out |
|
$ 102.63 | |||||
| 11 | 241993811 | Door-frzr,stainless ,complete Assy |
|
$ 393.41 | |||||
| 18 | 241972501 | Handle-door,stainless |
|
$ 227.22 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 13A | 241942604 | Door Stop,black ,frzr |
|
$ 20.56 | |||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 241990302 | Bearing-hinge(frz),closer |
|
$ 7.09 | |||||
| 22C | 241760402 | Bearing,hinge ,top |
|
$ 19.13 | |||||
| 4B | 240367302 | Bin-door,frzr-upper |
|
$ 138.65 | |||||
| 4C | 240358402 | Bin-door,frzr-dispenser |
|
- | |||||
| F1 | 241786016 | Gasket-frzr Door,white ,magnetic (Replaces: 241786004) |
|
$ 93.12 | |||||
| FNI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| FNI | 241834703 | Harness-wiring,door |
|
$ 109.96 | |||||
| NI | 241806601 | Connector-water,straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 240451503 | Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe |
|
$ 3.79 |
