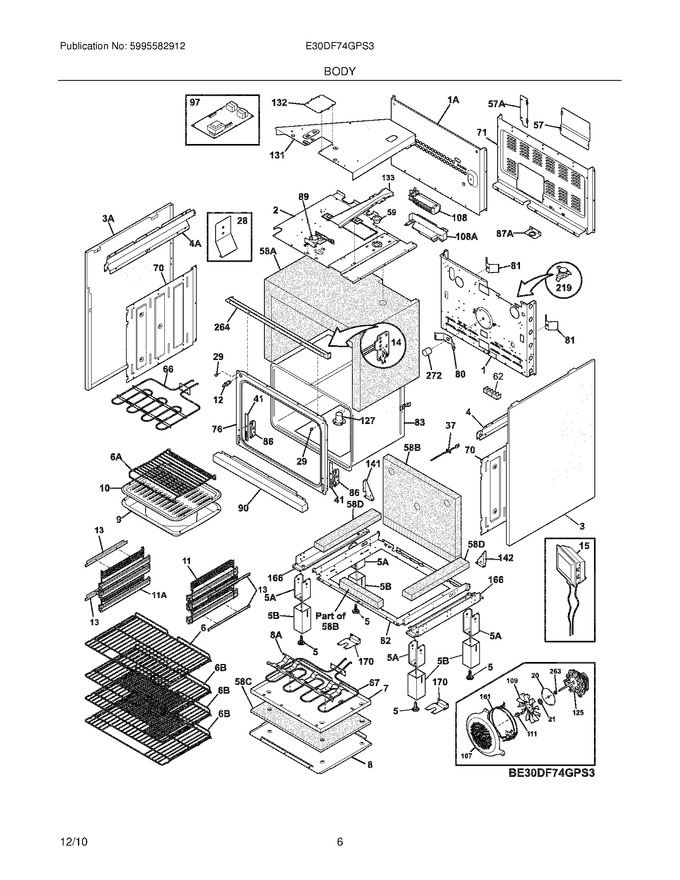

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318258922		Shield,insulation ,upper		Appelez-nous	-
3	318352702		Panel,side ,stainless ,lh		Appelez-nous	-
4	318356002		Panel,upper Side ,rh		Appelez-nous	-
5	318175506		Screw,leveling				$ 38.28
6	318240104		Shelf,oven ,fixed				$ 155.61
7	318297303		Box,bake Element				$ 125.84
8	318359500		Panel,service				$ 140.09
9	318138801		Pan,broiler		Appelez-nous	-
10	318126401		Insert,broiler Pan		Appelez-nous	-
11	318240014		Glide & Support Assy,oven Shelves ,rh				$ 440.48
12	316445501		Switch,oven Light ,door Frame				$ 90.01
13	318603913		Bracket,ladder Mtg. ,(4)				$ 66.99
14	318903401		Switch,rack Sensing		Appelez-nous	-
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
28	318369301		Bracket,side Panel ,(2)		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
41	318366603		Spacer,front Frame   (Replaces: 318366601)		Appelez-nous	-
57	318362600		Panel,service		Appelez-nous	-
59	318072577		Duct,oven Vent				$ 16.30
62	5303935061		Terminal Block Kit		Appelez-nous	-
70	318259105		Shield,insulation ,sides ,(2)				$ 91.51
71	318300903		Panel,cover		Appelez-nous	-
76	318056232		Front,oven				$ 108.05
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258770		Shield,insulation ,lower				$ 26.46
83	318261428		Liner,oven Assy		Appelez-nous	-
86	318241406		Receptacle,hinge ,(2)				$ 75.83
90	318355001		Trim,bottom ,stainless		Appelez-nous	-
97	316455704		Board,power ,relay			Immediately	$ 453.42
107	318906601		Cover,fan				$ 202.63
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318357001		Adapter Assembly,w/vent Tube ,and Catalyst				$ 50.66
131	318272901		Box,vent				$ 59.01
132	318003000		Plate,shield		Appelez-nous	-
133	318347800		Chimney		Appelez-nous	-
141	318368402		Bracket,reinforcement ,rh		Appelez-nous	-
142	318368403		Bracket,reinforcement ,lh		Appelez-nous	-
166	318352501		Bracket,leveling Leg ,(2) ,reinforcement				$ 57.91
170	318335701		Anti-tip & Accessories				$ 42.89
263	316008401		Washer,flat   (Replaces: 316136500)				$ 11.34
264	318257723		Trim,oven ,black ,front				$ 67.46
272	318249409		Tube,protector		Appelez-nous	-
11A	318240015		Glide & Support Assy,oven Shelves ,lh				$ 400.15
1A	318353109		Panel,back ,upper		Appelez-nous	-
3A	318352703		Panel,side ,stainless ,rh		Appelez-nous	-
4A	318356003		Panel,upper Side ,lh		Appelez-nous	-
57A	318394603		Panel,service		Appelez-nous	-
58A	318386100		Insulation,oven Wrapper		Appelez-nous	-
58B	318285079		Insulation,oven Back		Appelez-nous	-
58C	318294912		Insullation,bake Element				$ 97.17
58D	318372001		Insulation,20.5 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
5A	318368800		Bracket,leveling Leg ,(4)				$ 43.20
5B	318352404		Cover,leveling Leg ,(4)				$ 106.65
6A	318365800		Rack,broiler Pan				$ 52.46
6B	318345405		Shelf,oven ,extendable ,(2)				$ 177.66
87A	318111805		Plate,cord Set Mtg		Appelez-nous	-
8A	318313601		Bracket,bake Element				$ 71.45
F108	318073028		Motor,blower			Immediately	$ 271.69
F108	318251300		Bracket,fan Support				$ 54.60
F125	5304463302		Motor-convection			Immediately	$ 259.95
F15	318241006		Lamp,oven ,(2) ,halogen				$ 117.71
F161	318255511		Element,convection ,2500 W			Immediately	$ 110.20
F219	318003633		Thermostat,safety				$ 101.35
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F66	318255806		Element,broil ,4000w				$ 282.09
F67	318254916		Element,bake ,2500w ,8 Pass   (Replaces: 318254911)			Immediately	$ 204.47
F89	318261229		Motor,latch Assy   (Replaces: 318261211)			Immediately	$ 93.62
FNI	318402212		Wiring Harness,main ,latch				$ 40.01
FNI	318231886		Harness,wiring ,power				$ 32.29
FNI	318370390		Wiring Harness,main				$ 101.20
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303325978		Screw,shoulder Head ,8-18 X 1/2		Appelez-nous	-
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	318235301		Connector Assy.,w/3 Lugs ,& Instructions   (Replaces: 318235300)				$ 29.06
NI	318165800		Spacer				$ 17.72
NI	3051050		Screw-shoulder				$ 12.29
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
