SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body

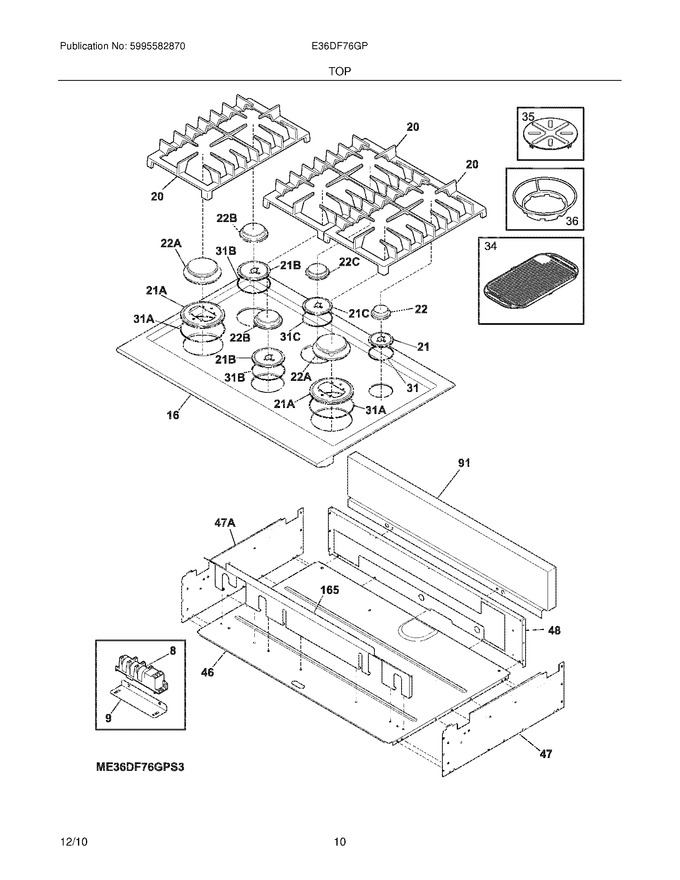

09 - Top


11 - Door


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	318387301		Bracket,spark Module		Appelez-nous	-
16	318185234		Main Top Assy,frame/glass ,stainless/black				$ 1,125.22
20	318361402		Grate,top Burner ,black ,(3) ,double		Appelez-nous	-
21	318293107		Skirt,5k Burner ,black				$ 60.67
22	316548600		Cap,burner ,5k ,black				$ 87.70
31	316242002		Seal,5k/9.5k Burner				$ 25.02
34	318251600		Griddle				$ 240.03
35	318254200		Simmer Plate				$ 67.83
36	318254300		Support,wok				$ 259.41
46	318242950		Panel,bottom		Appelez-nous	-
47	318241706		Panel,side ,rh		Appelez-nous	-
48	318241852		Panel,rear		Appelez-nous	-
91	318353012		Backsplash,stainless				$ 397.95
165	318355151		Deflector,heat		Appelez-nous	-
21A	316515100		Skirt,18k Burner ,black ,(2)				$ 63.47
21B	318293308		Skirt,14k Burner ,black			Immediately	$ 70.52
21C	318293007		Skirt,9.5k Burner ,black				$ 65.22
22A	316511502		Cap,burner ,18k ,black				$ 248.45
22B	316548800		Cap,burner ,14k ,black				$ 131.46
22C	316548700		Cap,burner ,9.5k ,black ,(2)				$ 134.23
31A	316515203		Seal,18k Burner ,(2)				$ 70.31
31B	316242000		Seal,12k/14k Burner				$ 73.71
31C	316242001		Seal,9.5k/12k Burner				$ 23.06
47A	318241707		Panel,side ,lh		Appelez-nous	-
F8	808608804		Module,spark   (Replaces: 318079001)			Immediately	$ 76.06
NI	5304463705		Screw,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	318165800		Spacer				$ 17.72
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
