SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner

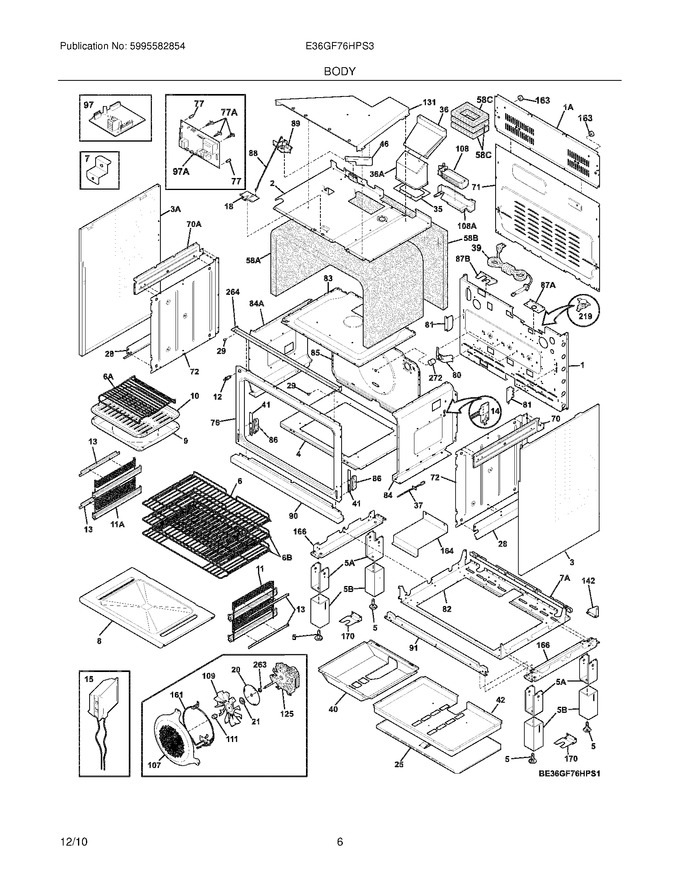

07 - Body


09 - Top


11 - Door


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259255		Back,main		Appelez-nous	-
2	318258956		Shield,insulation ,upper		Appelez-nous	-
3	318352764		Panel,side ,stainless ,lh		Appelez-nous	-
4	318364106		Liner,oven Bottom		Appelez-nous	-
5	318175506		Screw,leveling				$ 38.28
6	318240151		Shelf,oven ,fixed				$ 238.67
7	318533750		Bracket,main Back ,(2)		Appelez-nous	-
8	318290552		Panel,oven ,bottom		Appelez-nous	-
9	318138801		Pan,broiler		Appelez-nous	-
10	318126401		Insert,broiler Pan		Appelez-nous	-
11	318240056		Glide & Support Assy,oven Shelves ,rh		Appelez-nous	-
12	316445501		Switch,oven Light ,door Frame				$ 90.01
13	318603908		Bracket,ladder Mtg. ,(4)				$ 159.26
14	318903401		Switch,rack Sensing		Appelez-nous	-
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
25	318291951		Bracket,shield ,lower		Appelez-nous	-
28	318369311		Bracket,side Panel ,(2)		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
35	318291303		Seal,flue Cavity   (Replaces: 318291301)		Appelez-nous	-
36	318561208		Flue Assembly,upper		Appelez-nous	-
39	5304534377		Cord,service   (Replaces: 318144008)				$ 26.85
40	318291850		Box,oven Burner		Appelez-nous	-
41	318366603		Spacer,front Frame   (Replaces: 318366601)		Appelez-nous	-
42	318288750		Box,oven Burner		Appelez-nous	-
46	318258906		Deflector,air		Appelez-nous	-
70	318302750		Shield,insulation ,right		Appelez-nous	-
71	318260050		Panel,rear Box ,lower				$ 124.01
72	318259151		Shield,insulation ,sides ,(2)		Appelez-nous	-
76	318364902		Front,oven		Appelez-nous	-
77	318293702		Spacer,control				$ 16.22
80	318364800		Plate,oven Mtg		Appelez-nous	-
81	318373700		Bracket,oven ,(2)		Appelez-nous	-
82	318258782		Shield,insulation ,lower		Appelez-nous	-
83	318364205		Liner,oven Top		Appelez-nous	-
84	318364304		Liner,oven Side ,rh		Appelez-nous	-
85	318364413		Liner,oven Back		Appelez-nous	-
86	318241406		Receptacle,hinge ,(2)				$ 75.83
88	318376500		Rod,latch		Appelez-nous	-
90	318355052		Trim,bottom ,stainless				$ 353.22
91	318376300		Bracket,reinforcement		Appelez-nous	-
107	318906601		Cover,fan				$ 202.63
109	318398302		Fan Blade   (Replaces: 318398300)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
131	318272906		Box,vent		Appelez-nous	-
142	318368404		Bracket,reinforcement ,rh		Appelez-nous	-
163	318531700		Spacer,(2)		Appelez-nous	-
164	318125352		Plate,connection		Appelez-nous	-
166	318352550		Bracket,leveling Leg ,(2) ,reinforcement		Appelez-nous	-
170	318335704		Anti-tip & Accessories		Appelez-nous	-
263	318142100		Washer,motor ,convection				$ 12.39
264	318257753		Trim,oven ,black ,front		Appelez-nous	-
272	318249408		Tube,protector		Appelez-nous	-
11A	318240057		Glide & Support Assy,oven Shelves ,lh		Appelez-nous	-
1A	318260057		Panel,rear Box ,upper		Appelez-nous	-
36A	318561206		Flue Assembly,lower		Appelez-nous	-
3A	318352765		Panel,side ,stainless ,rh		Appelez-nous	-
58A	318362151		Insulation,top & Sides		Appelez-nous	-
58B	318362150		Insulation,oven Back		Appelez-nous	-
58C	318362154		Insulation,flue ,(3)		Appelez-nous	-
5A	318368850		Bracket,leveling Leg ,(4)		Appelez-nous	-
5B	318352451		Cover,leveling Leg ,(4)				$ 236.36
6A	318365800		Rack,broiler Pan				$ 52.46
6B	318240251		Shelf,oven ,(3) ,extendable				$ 272.35
70A	318302751		Shield,insulation ,left		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
7A	318533705		Bracket,main Back		Appelez-nous	-
84A	318364314		Liner,oven Side ,lh		Appelez-nous	-
87A	318111816		Plate,cord Set Mtg		Appelez-nous	-
87B	318111817		Plate,cord Set Mtg		Appelez-nous	-
F108	318251300		Bracket,fan Support				$ 54.60
F108	318073028		Motor,blower			Immediately	$ 271.69
F125	5304463302		Motor-convection			Immediately	$ 259.95
F15	318241006		Lamp,oven ,(2) ,halogen				$ 117.71
F161	318255504		Element,convection ,350 W				$ 97.07
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F219	318003633		Thermostat,safety				$ 101.35
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
F97	316519202		Board,relay ,convection				$ 305.44
F97A	316455711		Board,power ,relay		Appelez-nous	-
FNI	318532172		Harness,wiring ,main		Appelez-nous	-
FNI	318402211		Wiring Harness,main ,latch		Appelez-nous	-
NI	318391100		Screw,glide Mtg ,(2)				$ 141.75
NI	154079601		Nut,bracket Mtg ,(12)   (Replaces: 5304463707)				$ 0.41
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303310510		Screw,10-24 X 0.625				$ 14.18
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304440988		Screw,10-16 X 3/4		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5304463705		Screw,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	318165800		Spacer				$ 17.72

    View Diagram in Separate Window       Print Part List
