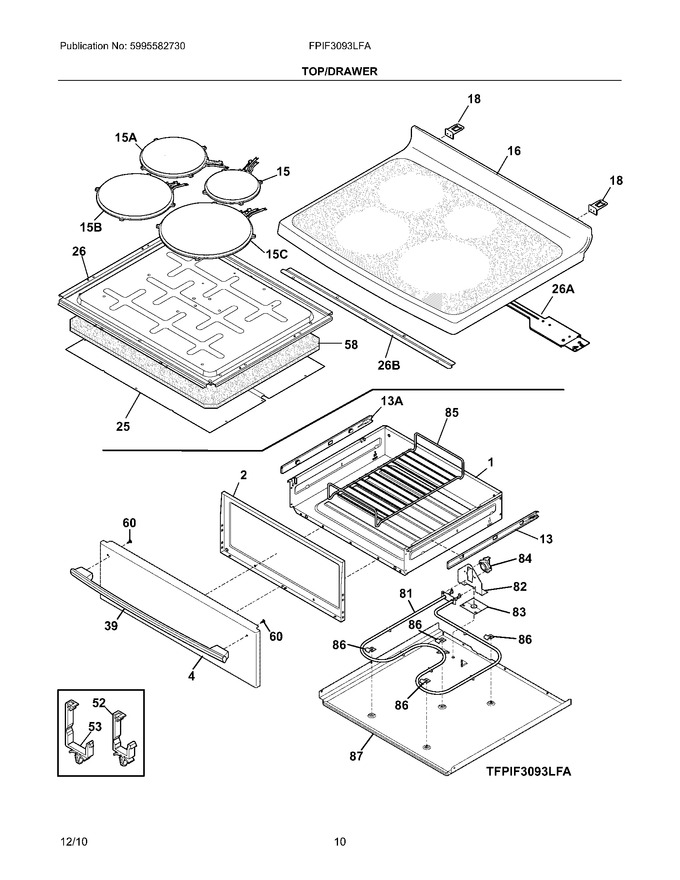

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Induction Unit


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408905		Drawer,warmer   (Replaces: 316408901)				$ 143.45
2	316403303		Liner,drawer				$ 67.79
4	5304523142		Panel,drawer Front ,stainless   (Replaces: 316409407)				$ 279.25
13	316415000		Glide,warmer ,inner Rh   (Replaces: 316415002)				$ 58.82
16	316282933		Maintop Assembly,glass/smoothtop ,black				$ 287.76
18	316580800		Bracket-hinge,main Top			Immediately	$ 9.86
25	316301300		Shield,heat ,induction		Appelez-nous	-
26	316301001		Panel,mounting ,induction Coils		Appelez-nous	-
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 112.88
52	316301200		Clip,wiring ,natural ,(2) ,induction		Appelez-nous	-
53	316303400		Clip,wiring ,black ,(3)		Appelez-nous	-
58	316301400		Insualtion,induction		Appelez-nous	-
60	316001013		Screw,wafer Head `10-24 X 1.375 ,handle Mtg.			Immediately	$ 2.41
82	316093200		Bracket,element Mtg		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093502		Thermo Disc,warmer Drawer				$ 51.03
85	807328301		Rack,warmer Drawer   (Replaces: 316425900)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base,warmer Drawer				$ 221.55
13A	316415001		Glide,warmer ,inner Lh			Immediately	$ 58.82
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
26B	316214201		Bracket,chassis Support ,front		Appelez-nous	-
F15	316300600		Element Assembly,induction ,6`` ,top Surface,w/wiring				$ 315.68
F15A	316300700		Element Assembly,induction Coil ,180 Mm				$ 354.69
F15B	316300800		Element Assembly,induction ,8`` ,top Surface,w/wiring				$ 342.04
F15C	316300900		Element Assembly,induction ,10`` ,top Surface,w/wiring				$ 351.28
F81	316437300		Element,warmer Drawer				$ 106.17
FNI	5304516184		Harness,warm Base   (Replaces: 316525623)				$ 28.51
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316301100		Screw,shoulder ,mounting ,(9) ,induction Coil		Appelez-nous	-
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
