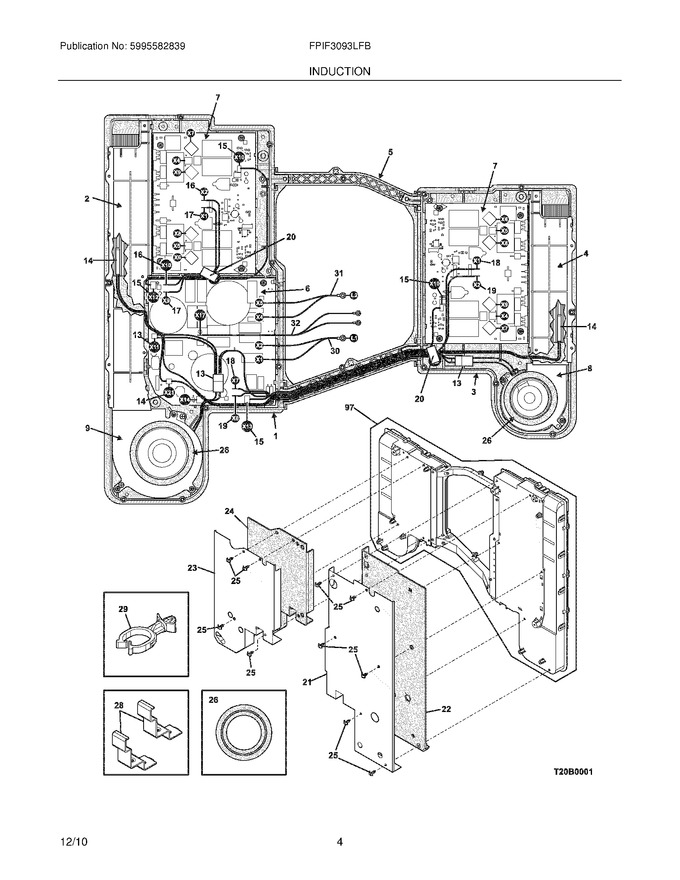

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316300500		Housing,large ,induction   (Replaces: 316300100)			Immediately	$ 1,053.86
2	316300400		Cover,large Housing ,air Channel		Appelez-nous	-
3	316300000		Housing,small ,induction		Appelez-nous	-
4	316300300		Cover,small Housing ,air Channel		Appelez-nous	-
5	316300200		Bracket,bridge ,induction		Appelez-nous	-
21	316302800		Shield,heat ,large Housing		Appelez-nous	-
22	316302300		Insulation,housing ,large		Appelez-nous	-
23	316302900		Shield,heat ,small Housing		Appelez-nous	-
24	316302400		Insulation,housing ,small		Appelez-nous	-
25	316303100		Fastener,mounting ,(6)		Appelez-nous	-
26	316302202		Seals,ring ,3.5`` And 4.5`` ,fans ,(2)		Appelez-nous	-
28	316301900		Bracket,mounting ,induction Hsg.		Appelez-nous	-
29	316302100		Standoff,wiring		Appelez-nous	-
F13	316303800		Harness Assembly,cooling Fans ,x11 To Fans		Appelez-nous	-
F14	316303900		Sensor Assembly,temperature ,x21 To Sensors,heat Sinks ,w/harness		Appelez-nous	-
F15	316304000		Cable,ribbon ,x12/x13 To X10 ,filter ,to Generator		Appelez-nous	-
F16	316304100		Power Cable Set,filter ,8`` ,black ,to Generator,x10/x2		Appelez-nous	-
F17	316304101		Power Cable Set,filter ,8`` ,blue ,to Generator,x9/x1		Appelez-nous	-
F18	318052581		Power Cable Set,filter ,18`` ,black ,to Generator,x7/x1		Appelez-nous	-
F19	318052582		Power Cable Set,filter ,18`` ,blue ,to Generator,x8/x2		Appelez-nous	-
F20	316300500		Core,magnetic ,toroid   (Replaces: 316304200)			Immediately	$ 1,053.86
F30	5304519000		Harness,wiring ,l1 To X1-x2   (Replaces: 316525625)				$ 18.00
F31	5304518999		Harness,wiring ,l2 To X4-x5   (Replaces: 316525626)				$ 19.42
F32	316525616		Harness,wiring ,aux. Ground		Appelez-nous	-
F6	316303600		Board,filter ,induction				$ 863.02
F7	316304300		Board,generator ,induction		Appelez-nous	-
F8	5303935297		Fan Assembly,cooling ,small ,right Housing,w/seal Ring		Appelez-nous	-
F9	5303935296		Fan Assembly,cooling ,large ,left Housing,w/seal Ring		Appelez-nous	-
F97	316300500		Control Assembly,induction ,complete ,w/boards & Fans			Immediately	$ 1,053.86
FNI	316303501		Harness Assembly,filter ,electrical ,w/capacitors				$ 84.91
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316114100		Spacer				$ 60.96
