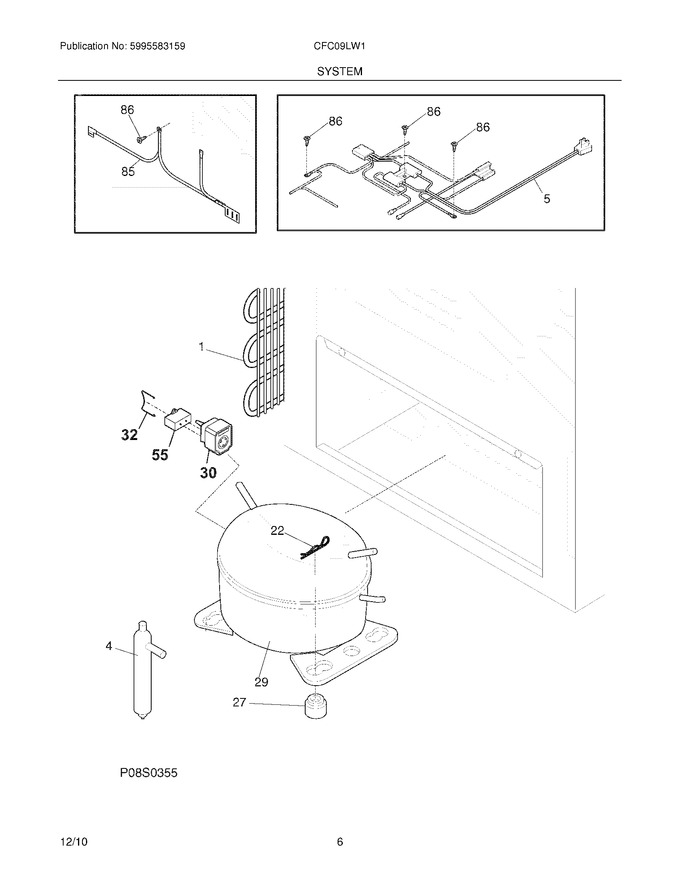

07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5303305677 | Drier-filter (Replaces: 216987501) |
|
Immediately | $ 31.67 | ||||
| 5 | 297232502 | Harness-main,5 No. |
|
$ 66.10 | |||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 2.84 | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 297293302) |
|
$ 13.01 | |||||
| 30 | 216954222 | Controller |
|
$ 85.05 | |||||
| 32 | 216649200 | Clip,controller |
|
$ 6.30 | |||||
| 55 | 297286812 | Capacitor-run,250 Va ,12 Mf (Replaces: 297286802) |
|
Immediately | $ 11.78 | ||||
| 85 | 216818300 | Wire-ground |
|
- | |||||
| 86 | 216707801 | Screw,ph ,8-32 X 1/2 ,wiring Harness |
|
- | |||||
| F1 | 5300120781 | Condenser |
|
- | |||||
| F29 | 297270400 | Compressor,w/o Electricals |
|
- |
