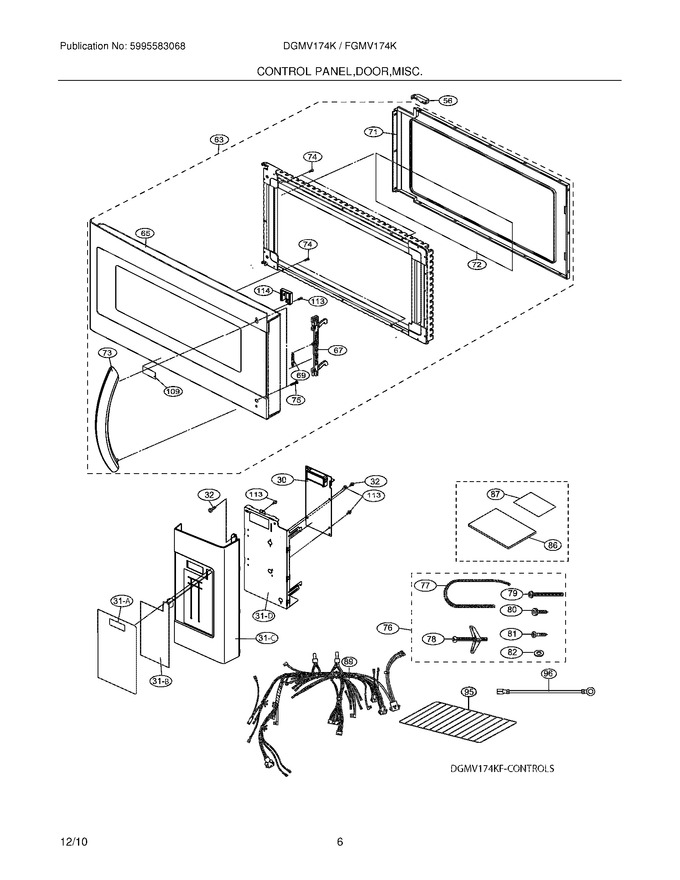

05 - Control Panel,door,misc.


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	5304467710		Screw,3 Mm X 8 Mm				$ 14.18
56	5304468199		Door Stop				$ 15.38
65	5304473842		Frame,door ,stainless   (Replaces: 5304473843)				$ 584.85
67	5304440314		Latch,door			Immediately	$ 51.13
69	5304440316		Spring,door Latch			Immediately	$ 61.00
71	5304440320		Frame,choke Cover ,inner Door		Appelez-nous	-
72	5304468205		Seal,door ,film				$ 34.44
73	5304471830		Handle,door ,stainless ,gallery				$ 142.54
74	5304451517		Screw,4 Mm X 8 Mm				$ 17.35
75	5304468931		Screw,4 Mm X 15 Mm				$ 9.83
76	5304464349		Hardware Kit,installation   (Replaces: 5304467765)			Immediately	$ 57.11
77	5303318761		Sleeve,power Cord ,grommet				$ 25.05
78	5303318762		Screw,toggle				$ 11.71
79	5304453895		Screw,5mm X 85mm				$ 16.68
80	5304502863		Screw,4 Mm X 8 Mm ,silver   (Replaces: 5304451552)				$ 10.85
81	5304453723		Screw,5mm X 35mm				$ 13.28
82	5304453724		Washer				$ 12.68
86	5304468216		Template,installation ,top				$ 27.98
87	5304468217		Template,installation ,wall		Appelez-nous	-
95	5304440338		Rack,microwave Oven ,wire				$ 256.10
109	5304471837		Badge,nameplate ,gallery				$ 57.49
113	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
114	5304473840		Cover,screw ,black		Appelez-nous	-
31C	5304473818		Cover,control Panel ,stainlesswhen Replacing Item 31c, Items 31aand 31b Must Als				$ 176.72
31D	5304473819		Panel,control Mount				$ 26.51
F30	5304481625		Control Board,printed Circuit				$ 273.61
F31A	5304473811		Overlay,touch Control ,black				$ 36.86
F31B	5304473813		Touch Control,key Pad				$ 49.98
F63	5304473842		Door Assy,stainless ,w/handle,glass				$ 584.85
F89	5304473820		Wiring Harness,main		Appelez-nous	-
F96	5304467828		Wire,ground		Appelez-nous	-
