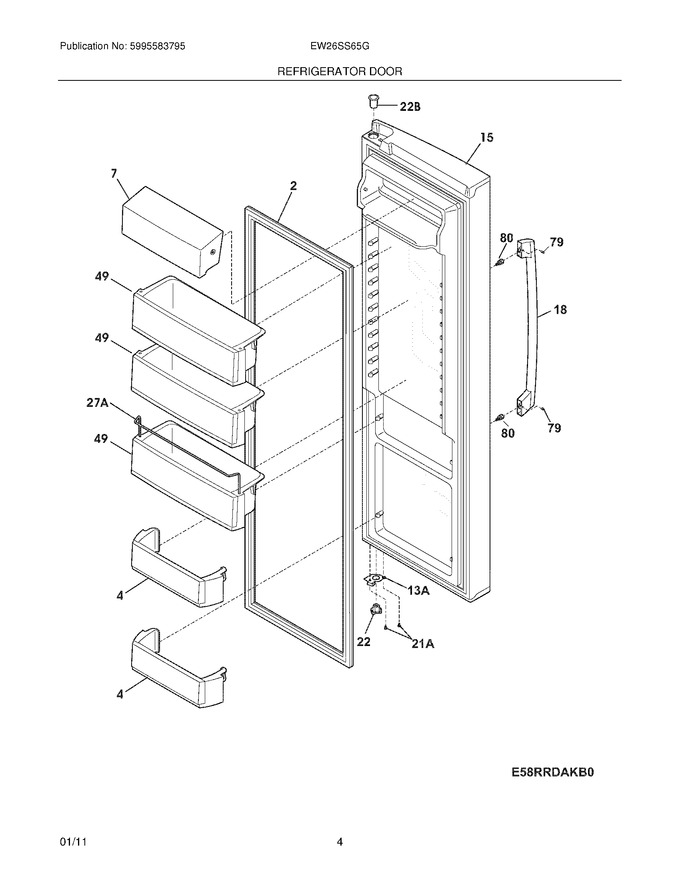

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 241751101 | Bin-door,2-liter |
|
$ 94.98 | |||||
| 7 | 241853401 | Door-dairy |
|
$ 57.17 | |||||
| 15 | 242038834 | Door-refr,stainless ,complete Assy |
|
$ 716.27 | |||||
| 18 | 241881304 | Handle-refr Door,stainless |
|
$ 263.66 | |||||
| 22 | 241990301 | Bearing-hinge,gray |
|
$ 7.09 | |||||
| 49 | 241749901 | Bin-door,gallon |
|
$ 82.60 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 241990201 | Door Stop,black ,ref |
|
$ 21.27 | |||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760403 | Bearing,hinge ,top |
|
Immediately | $ 19.13 | ||||
| 27A | 241752801 | Retainer-bottle |
|
$ 38.23 | |||||
| F2 | 241786013 | Gasket-refr Door,white ,magnetic (Replaces: 241786001) |
|
$ 95.90 | |||||
| NI | 241701902 | Screwdriver-3/32`` Balldriver |
|
$ 19.85 | |||||
| NI | 241601002 | Wrench,allen |
|
- |
