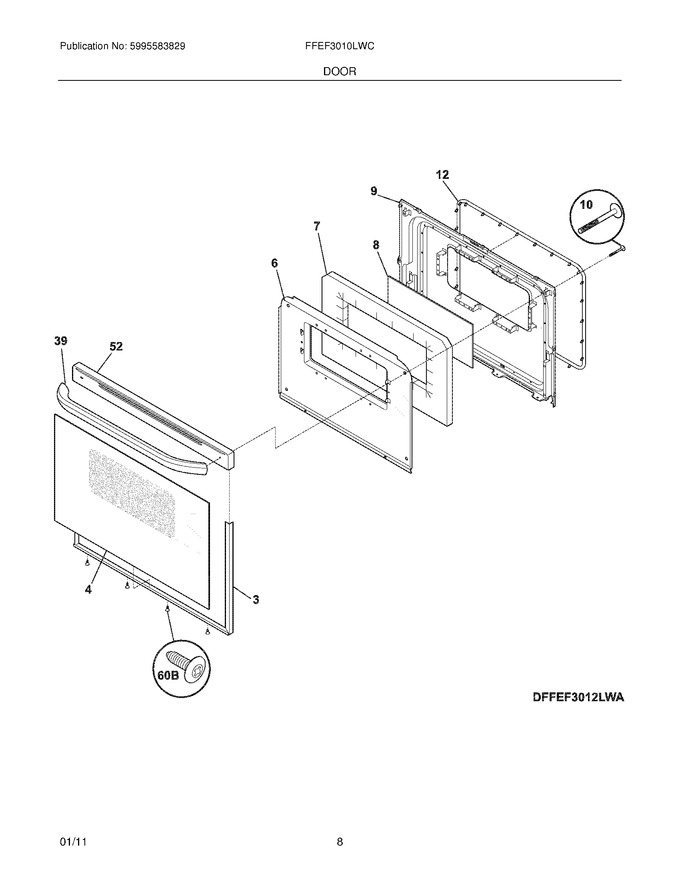

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935347		Trim Kit-door,3 Sided ,white ,w/tape				$ 62.90
4	5303935204		Glass,door Kit ,white ,outer ,w/ Foil Tape				$ 454.31
6	316222703		Shield,oven Door ,wool   (Replaces: 316222709)				$ 78.67
7	316236802		Insulation,oven Door				$ 41.63
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316230628		Liner,oven Door				$ 128.90
10	316278700		Screw,10-14 X 1.365`` ,handle Mtg.   (Replaces: 316433301)			Immediately	$ 27.50
12	316239700		Seal,oven Door			Immediately	$ 152.43
39	316545301		Handle,door/drawer ,white			Immediately	$ 130.85
52	316491200		Cap,door Trim ,white			Immediately	$ 119.83
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433600		Label,anti-tip		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
