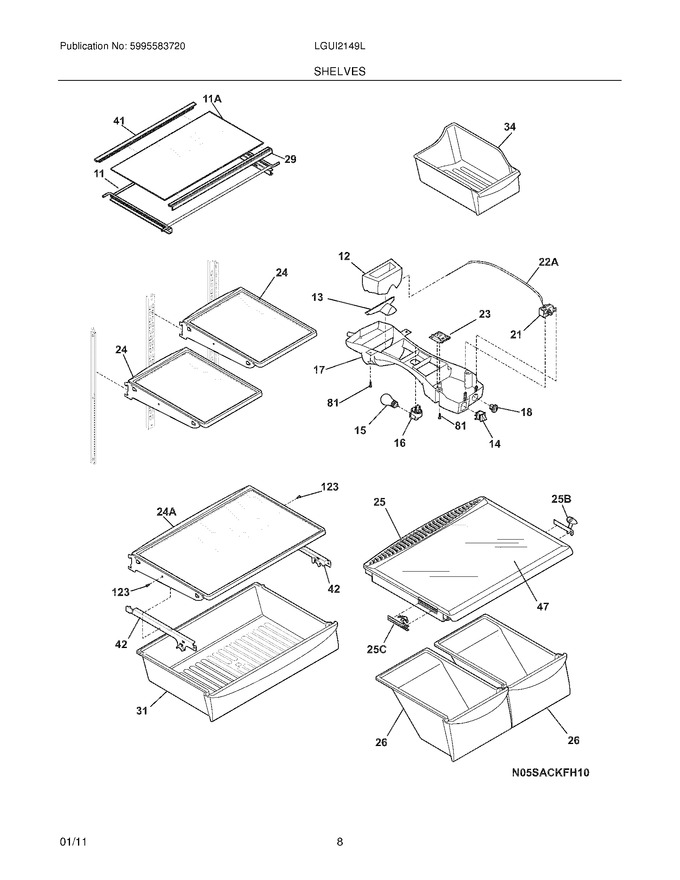

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 242087801 | Frame-shelf,full Width |
|
- | |||||
| 12 | 240545901 | Diffuser-air,top |
|
$ 70.16 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket-light |
|
$ 72.68 | |||||
| 17 | 240368105 | Box-control,front (Replaces: 240368103) |
|
Immediately | $ 130.44 | ||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240355261 | Shelf-``spill-safe``,fixed |
|
$ 168.53 | |||||
| 25 | 240364790 | Cover-crisper Pan |
|
$ 135.66 | |||||
| 26 | 240343803 | Pan-crisper,(2) |
|
Immediately | $ 171.91 | ||||
| 29 | 242110901 | Trim-shelf,front |
|
- | |||||
| 31 | 242090001 | Pan-meat |
|
- | |||||
| 34 | 240385201 | Container,ice Bin |
|
$ 97.83 | |||||
| 41 | 242111001 | Trim-shelf,rear |
|
$ 19.24 | |||||
| 42 | 242089802 | Track,meat Pan Hanger ,lh |
|
$ 18.74 | |||||
| 42 | 242089801 | Track,meat Pan Hanger ,rh |
|
$ 20.08 | |||||
| 47 | 240350609 | Insert-pan Cover,glass |
|
Immediately | $ 162.30 | ||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 7/16 |
|
$ 14.89 | |||||
| 11A | 242087901 | Glass-shelf,full Shelf |
|
- | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white |
|
$ 9.10 | |||||
| 24A | 240408910 | Shelf-``spill-safe``,cantilever Fixe |
|
- | |||||
| 25B | 241613501 | Control-humidity,rh |
|
Immediately | $ 12.05 | ||||
| 25C | 241613502 | Control-humidity,lh |
|
$ 47.78 | |||||
| F14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| F21 | 241537103 | Control-temperature (Replaces: 5304445058) |
|
Immediately | $ 72.31 | ||||
| F23 | 242011003 | Control-defrost,adaptive Timer ,pc Board |
|
- | |||||
| FNI | 242081702 | Wiring Harness,control Box |
|
- | |||||
| NI | 242028590 | Energy Guide |
|
- | |||||
| NI | 5304455649 | Screw,pan Hd ,6-20 X 0.438 |
|
$ 17.01 | |||||
| NI | 5304535377 | Tape,aluminum ,3`` Wide (Replaces: 240570304) |
|
$ 31.36 | |||||
| NI | 240349801 | Clip-slide,pan-crisper |
|
$ 20.48 | |||||
| NI | 240362101 | Clip-slide,cover-crisper |
|
$ 47.03 | |||||
| NI | 241768601 | Support-crspr Cover |
|
$ 19.13 |
