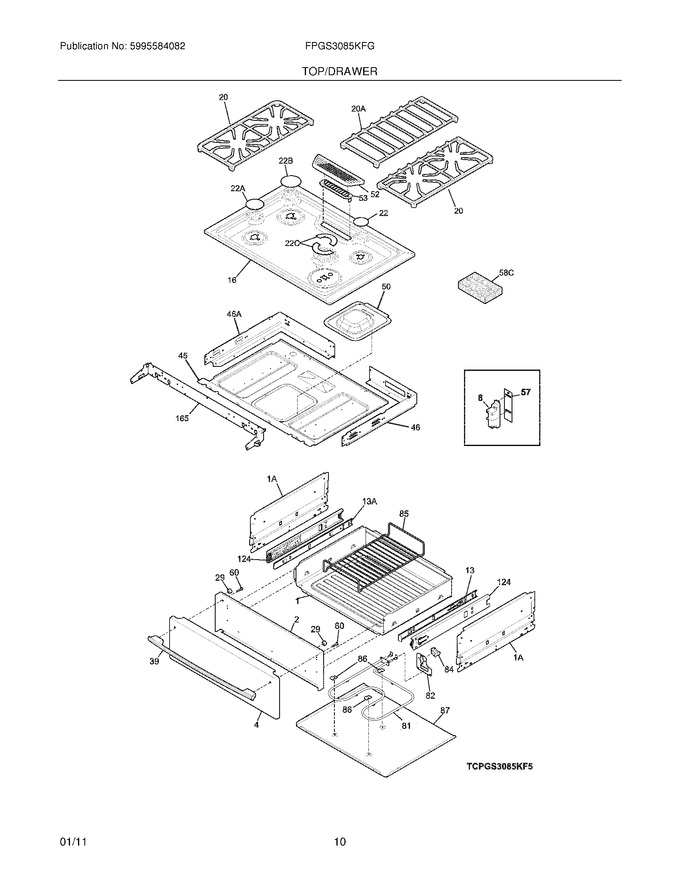

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304404		Drawer,body Assembly				$ 195.56
2	318303907		Panel,drawer ,black ,inner				$ 124.90
4	318298829		Panel,drawer ,stainless ,front   (Replaces: 318298826)				$ 210.92
13	318259509		Glide,warmer ,inner Rh				$ 26.25
16	318569268		Maintop Assembly,black				$ 689.12
20	318560130		Grate,burner ,black ,(2)		Appelez-nous	-
22	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
29	318147430		Bumper,(2)				$ 18.95
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 112.88
45	318578701		Panel,burner Box ,bottom		Appelez-nous	-
46	318568200		Box,burner ,rh				$ 23.99
50	318578801		Panel,service ,fan		Appelez-nous	-
52	318291126		Cover,flue ,black ,outer   (Replaces: 318291102)				$ 87.55
53	318308303		Cover,flue ,black				$ 112.19
57	318295611		Panel,service				$ 15.12
60	5304472906		Screw,handle Mtg ,no.10-24 X 1.5 ,(2)				$ 8.98
82	318304500		Bracket,element ,warmer Drawer				$ 11.29
85	807328301		Rack,warmer Drawer   (Replaces: 318345601)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318300102		Panel,warmer Drawer ,lower				$ 106.22
124	316105501		Glide,outer/rh & Lh ,(2)				$ 90.72
165	318913300		Deflector,box ,front				$ 48.67
13A	318259508		Glide,warmer ,inner Lh				$ 27.88
1A	318300003		Panel,warmer Drawer ,side ,(2)				$ 56.13
20A	318560340		Grate,burner ,black ,center				$ 229.43
22A	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
22B	5304508443		Cap,14k Burner ,black   (Replaces: 316262004)			Immediately	$ 46.01
22C	316262204		Cap,17k Twin Burner ,black ,(2)			Immediately	$ 72.80
46A	318568201		Box,burner ,lh				$ 28.93
58C	318594402		Insulation,flue   (Replaces: 318285099)				$ 245.64
F8	5304505695		Module,spark   (Replaces: 316135702)			Immediately	$ 68.16
F81	318255301		Element,warmer Drawer				$ 105.42
F84	318005108		Thermostat			Immediately	$ 81.14
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	5304440988		Screw,10-16 X 3/4		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
NI	5304476994		Screw,8-18 X 1/4 ,(2) ,inner Glide Mtg		Appelez-nous	-
NI	318199748		Wiring Harness,drawer				$ 35.86
