View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

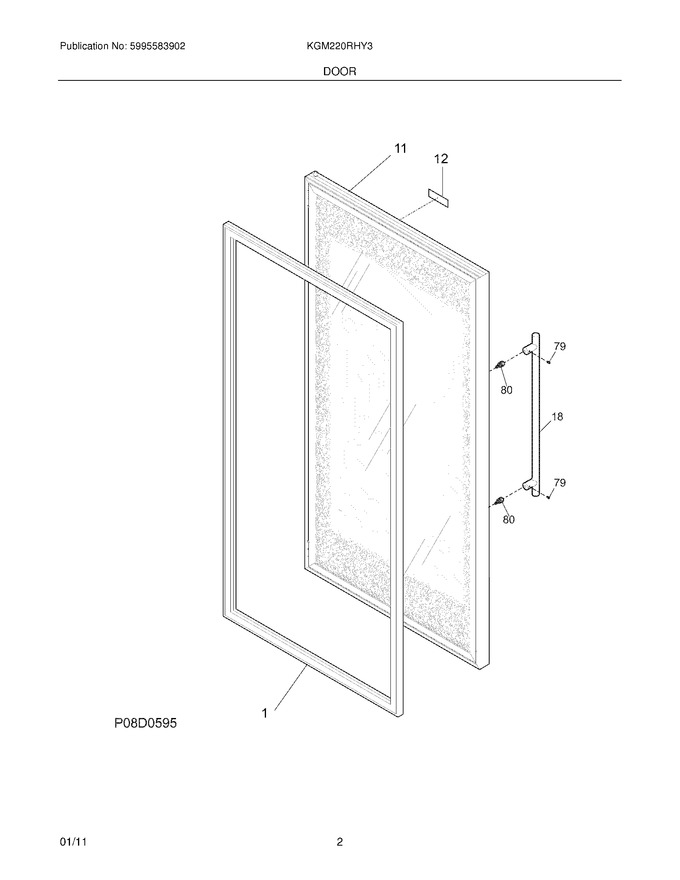

03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216657201 | Gasket-door,black |
|
$ 256.04 | |||||
| 11 | 297071600 | Door-assy,glass |
|
$ 1,529.20 | |||||
| 12 | 297146600 | Nameplate,commercial |
|
- | |||||
| 18 | 297314000 | Handle |
|
$ 143.88 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| NI | 297168700 | Instructions,handle |
|
- |
