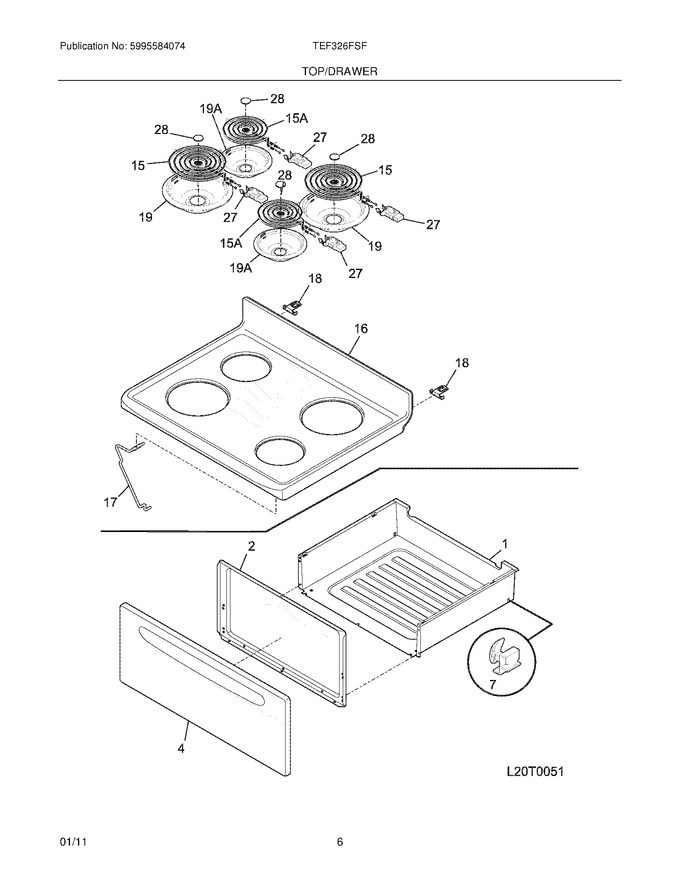

07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer,utility (Replaces: 316408703) |
|
Immediately | $ 110.61 | ||||
| 2 | 5304511288 | Liner,drawer (Replaces: 316284800) |
|
$ 57.64 | |||||
| 4 | 316231305 | Panel,drawer ,white |
|
$ 55.80 | |||||
| 7 | 316407402 | Glide,drawer ,rear (Replaces: 316407400) |
|
Immediately | $ 9.86 | ||||
| 16 | 316202388 | Main Top,white |
|
$ 407.24 | |||||
| 17 | 316057601 | Rod,support ,main Top |
|
$ 64.49 | |||||
| 18 | 316436600 | Hinge Bracket,maintop ,(2) |
|
$ 45.36 | |||||
| 27 | 5303935058 | Terminal Block Kit,surface Element (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| 28 | 5303017715 | Medallion,1 1/2``dia ,black ,surface Element |
|
$ 64.46 | |||||
| F15 | 316442300 | Element,surface ,8`` ,large (Replaces: 318372213) |
|
Immediately | $ 59.16 | ||||
| F15A | 318372210 | Element,surface ,6`` ,small |
|
Immediately | $ 20.21 | ||||
| F19 | 316048413 | Pan-surface Element,chrome ,large/8 Inch |
|
Immediately | $ 9.85 | ||||
| F19A | 316048414 | Pan-surface Element,chrome ,small/6 Inch |
|
Immediately | $ 16.11 | ||||
| FNI | 316580400 | Harness,wiring ,surface Units |
|
$ 184.37 | |||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 5308014215 | Screw`6-20 X 0.312 |
|
$ 2.28 |
