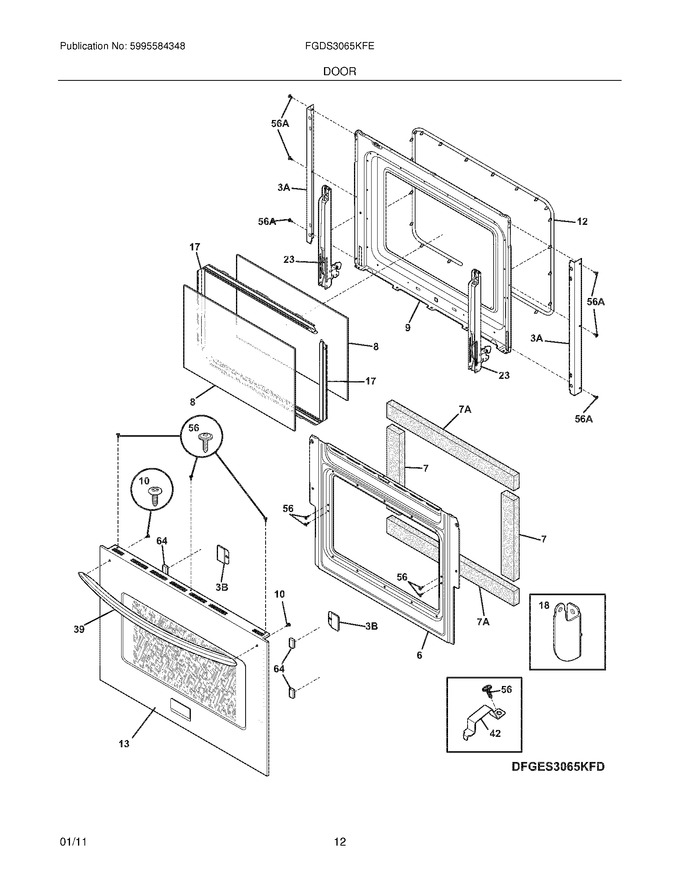

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260527		Baffle,door ,lower		Appelez-nous	-
7	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117502)				$ 116.95
9	318411647		Liner,oven Door				$ 101.85
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
12	318053132		Gasket,oven Door Seal			Immediately	$ 159.56
13	318927821		Door Assembly,outer ,steel/glass ,stainless/black,w/badge				$ 256.62
17	318264731		Spacer,glass ,(2)   (Replaces: 318264715)				$ 72.05
18	316547900		Link,door ,(2) ,auto Rack				$ 20.56
23	318567101		Hinge,oven Door ,(2)				$ 76.18
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
3B	318262104		Cover,rear Door ,black ,(2)				$ 24.99
56A	5304476599		Screw,8-18 X 3/8				$ 3.36
7A	318372016		Insulation,24 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372002)				$ 17.72
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	316221001		Label,anti-tip		Appelez-nous	-
