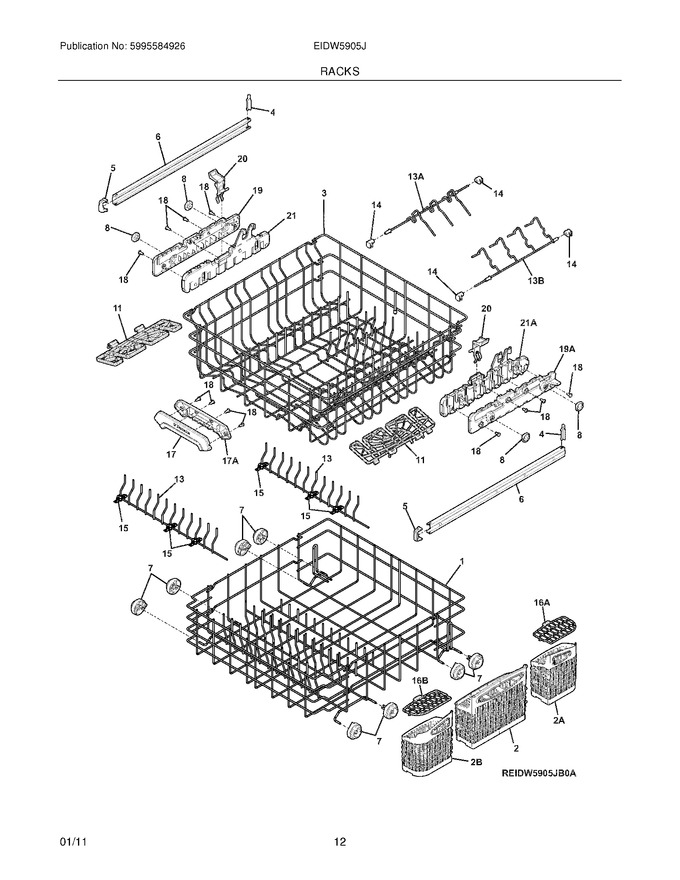

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140222632022		Rack Assembly,lower   (Replaces: 154808001)			Immediately	$ 134.18
2	5304535382		Basket,silverware ,main   (Replaces: 154424005)			Immediately	$ 25.43
3	154807901		Rack Assembly,upper		Appelez-nous	-
4	154510902		Clip,guide Rail ,rear ,(2)				$ 17.31
5	154510805		Cap,guide Rail ,front ,(2)				$ 13.74
6	154510401		Guide Rail,upper Rack ,(2)				$ 28.35
7	154813701		Wheel Assembly,lower Rack ,(8) ,w/bushing				$ 19.06
8	154834504		Roller,upper Rack ,(4)				$ 11.58
11	5304532945		Shelf,cup ,half Width ,metalic Grey   (Replaces: 154436105)				$ 7.42
13	140054938026		Fence,fold Down ,lower Rack ,(2) ,full Length   (Replaces: 154721403)			Immediately	$ 14.70
14	154242004		Bracket,multi Fence ,upper Rack ,(4)		Appelez-nous	-
15	154428403		Bracket,fence ,lower Rack ,(18)			Immediately	$ 5.08
17	154817201		Handle,front ,upper Rack ,electrolux		Appelez-nous	-
18	154754701		Screw,truss Hd ,8-18 Type Ab				$ 3.55
19	154586003		Cover,adjuster ,lh				$ 21.74
20	154585803		Release Lever,height Adj		Appelez-nous	-
21	154585503		Plate,wheel ,lh ,hieght Adj.				$ 27.35
13A	154740303		Fence,multi,3 Wire ,lh ,upper Rack		Appelez-nous	-
13B	5304532950		Fence,multi,4 Wire ,rh ,upper Rack   (Replaces: 154740403)			Immediately	$ 19.76
16A	154748102		Lid,back Basket		Appelez-nous	-
16B	154748002		Lid,front Basket		Appelez-nous	-
17A	154803801		Handle,back ,upper Rack		Appelez-nous	-
19A	154586103		Cover,adjuster ,rh				$ 20.32
21A	154585603		Plate,wheel ,rh ,hieght Adj.				$ 26.25
2A	5304535382		Basket,silverware ,back   (Replaces: 154747802)			Immediately	$ 25.43
2B	5304535382		Basket,silverware ,front   (Replaces: 154747902)			Immediately	$ 25.43
