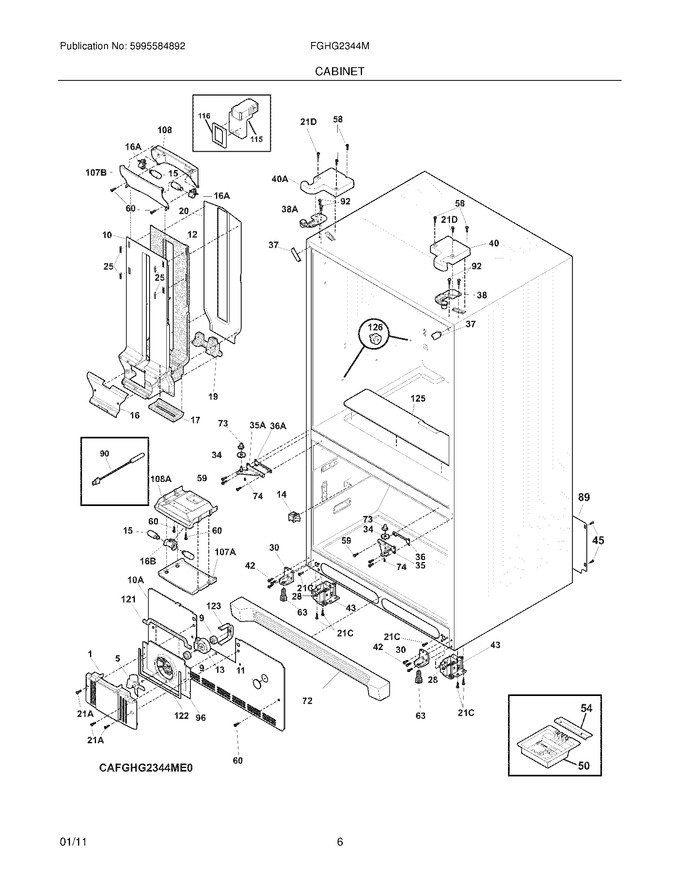

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242099401		Cover-fan				$ 29.11
9	241518301		Bushing,motor Mounting				$ 66.63
10	242072001		Cover-air Duct				$ 154.67
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	242072402		Insulation-air Duct				$ 34.02
16	242072101		Cover-damper				$ 50.63
17	5303918479		Gasket-air Duct/liner   (Replaces: 242071901)				$ 45.41
19	242072601		Support-eps Damper				$ 47.78
20	242072201		Cover-air Duct,rear				$ 96.95
25	241949502		Clip,air Vent				$ 20.48
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 31.33
30	241778701		Bracket-anti Tip				$ 26.54
34	241868301		Washer,hinge ,nylon ,(2)				$ 31.19
35	241763005		Hinge-lower,rh		Appelez-nous	-
36	241868201		Spacer,door ,lower Rh				$ 49.62
37	242161201		Trim-cabinet Corner,white ,(2)   (Replaces: 240337608)			Immediately	$ 2.93
38	241761301		Bracket-upper Hinge,rh				$ 66.25
40	242099802		Cover-upper Hinge,white				$ 54.34
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy,front ,(2)   (Replaces: 240335006)			Immediately	$ 31.33
45	241500303		Screw,hex Washer Head ,8-18ab X 1/2			Immediately	$ 4.55
54	241532401		Channel				$ 30.47
58	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
59	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	242054804		Grille/kickplate,white   (Replaces: 242054803)				$ 83.64
73	242075701		Cam-lower Hinge				$ 22.75
74	242026701		Screw,no.6-32 X 9/16		Appelez-nous	-
89	5304520905		Cover-access,w/label   (Replaces: 241733905)			Immediately	$ 74.03
90	240597220		Sensor   (Replaces: 240597203)			Immediately	$ 5.16
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
96	241860601		Shroud-evap Fan Mtg			Immediately	$ 131.83
108	241971401		Cover-wiring,top Air Duct		Appelez-nous	-
115	5303918899		Damper,motorized   (Replaces: 241518501)			Immediately	$ 73.24
116	241518601		Seal-damper,foam				$ 9.22
121	241860103		Gasket-evap,upper			Immediately	$ 3.73
122	241860117		Gasket-evap,bottom   (Replaces: 241860102)			Immediately	$ 11.21
123	242135301		Clip,evap Fan Motor   (Replaces: 241517701)				$ 7.79
125	242071201		Cover,sump				$ 114.82
126	242081301		Screw-shoulder		Appelez-nous	-
10A	241860402		Cover-evap Coil,lower			Immediately	$ 130.91
21A	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 15.92
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
21D	241548003		Screw,10-32 X 3/8				$ 3.03
35A	241763006		Hinge-lower,lh		Appelez-nous	-
36A	241868202		Spacer,door ,lower Lh				$ 23.51
38A	241761302		Bracket-upper Hinge,lh				$ 64.49
40A	242099805		Cover-upper Hinge,white ,lh		Appelez-nous	-
F107	241971202		Shield-light,upper				$ 36.41
F107	241971601		Shield-light,frzr				$ 35.65
F108	241971801		Cover-wiring,freezer Light				$ 87.32
F10A	241860104		Gasket-coil Cover			Immediately	$ 29.77
F10A	241860105		Gasket-coil Cover			Immediately	$ 17.87
F13	809069220		Motor,evaporator Fan   (Replaces: 241509402)			Immediately	$ 154.14
F14	240505801		Switch-light/lamp				$ 66.63
F15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
F16A	240590403		Socket-light,top & Mid   (Replaces: 240590402)				$ 26.54
F16A	241969202		Harness-wiring,top Light				$ 92.84
F16B	241510802		Harness-wiring,frz Light				$ 41.81
F16B	241622802		Socket-light,frz Light				$ 65.93
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
F50	241996355		Board-main Power				$ 699.22
FNI	242061602		Harness-wiring,air Duct		Appelez-nous	-
FNI	242104901		Harness-wiring				$ 127.40
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 18.20
NI	241969001		Cap,screw				$ 16.69
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
NI	242025201		Pipe,foam		Appelez-nous	-
NI	241953904		Screw,no.8-18				$ 10.63
NI	242004802		Foam-strip				$ 5.67
NI	242072501		Cover-eps,damper				$ 19.72
