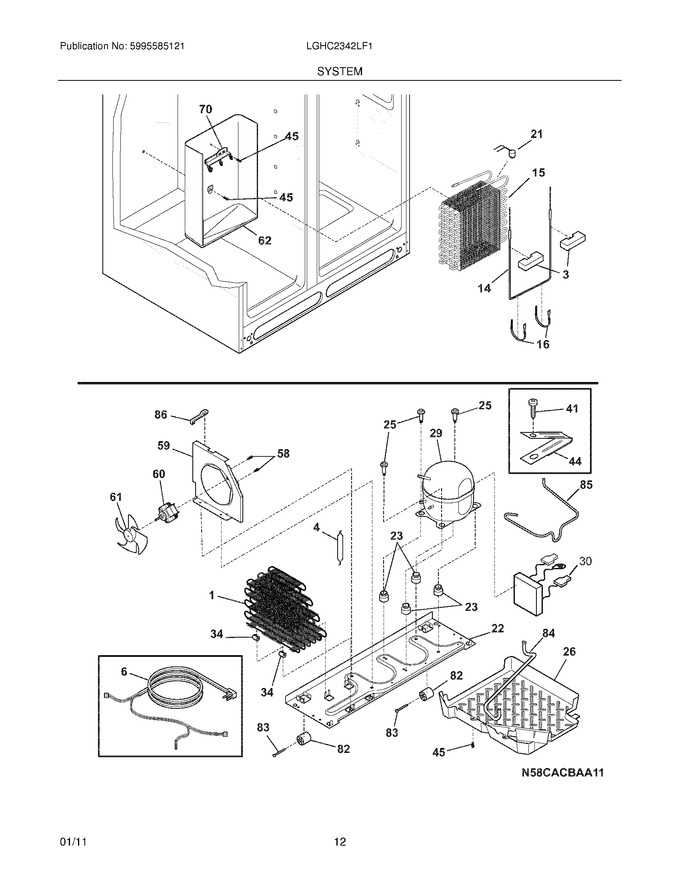

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304526057 | Condenser (Replaces: 242039202) |
|
$ 153.20 | |||||
| 3 | 218679614 | Block-evap Coil,styrofoam ,(2) (Replaces: 218679607) |
|
$ 19.85 | |||||
| 6 | 241516904 | Cord-service (Replaces: 241516901) |
|
Immediately | $ 38.68 | ||||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 21 | 5303918214 | Thermostat-defrost,kit |
|
Immediately | $ 33.42 | ||||
| 22 | 240330012 | Base-compressor |
|
$ 133.73 | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 42.53 | |||||
| 25 | 240491503 | Screw-compressor Mtg,1/4-28 X 1.16 ,(4) |
|
$ 13.95 | |||||
| 26 | 241697502 | Pan-defrost Drain (Replaces: 241697501) |
|
$ 156.92 | |||||
| 34 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 19.85 | |||||
| 41 | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 44 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 58 | 240569201 | Screw,8-18 X 0.500 |
|
- | |||||
| 59 | 241946106 | Shroud-cond Fan |
|
$ 45.36 | |||||
| 60 | 297279500 | Motor-condenser Fan (Replaces: 241584301) |
|
Immediately | $ 141.66 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 62 | 240429405 | Trough-drain |
|
- | |||||
| 70 | 218990801 | Bracket-evap/cvr Mtg |
|
$ 63.79 | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin |
|
Immediately | $ 35.34 | ||||
| 84 | 241957901 | Tube-drain,lower |
|
$ 60.96 | |||||
| 85 | 241871501 | Tube-connector,suction |
|
$ 42.53 | |||||
| 86 | 240409302 | Spacer-cond Tube,black |
|
$ 67.49 | |||||
| F14 | 242044113 | Heater-defrost |
|
Immediately | $ 103.72 | ||||
| F15 | 5303918480 | Evaporator Kit |
|
$ 299.00 | |||||
| F29 | 5304475104 | Compressor Kit (Replaces: 5303918396) |
|
$ 825.22 | |||||
| F30 | 241577505 | Invertor |
|
Immediately | $ 364.10 | ||||
| F4 | 5303305677 | Drier-filter,r134a System (Replaces: 218944001) |
|
Immediately | $ 31.67 | ||||
| FNI | 242066402 | Harness-wiring,machine Compt |
|
- | |||||
| FNI | 5303918327 | Heat Exchanger Kit,suction Line |
|
$ 303.91 | |||||
| FNI | 241519902 | Harness-wiring |
|
$ 83.84 | |||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| NI | 241852501 | Clip,wiring Harness |
|
$ 15.60 | |||||
| NI | 5303918222 | Hot Tube Repair Kit,service |
|
$ 418.12 | |||||
| NI | 240359403 | Screw-fan Shroud,(2) |
|
$ 3.79 | |||||
| NI | 240346701 | Tape-foam Seal,shroud |
|
$ 29.77 |
