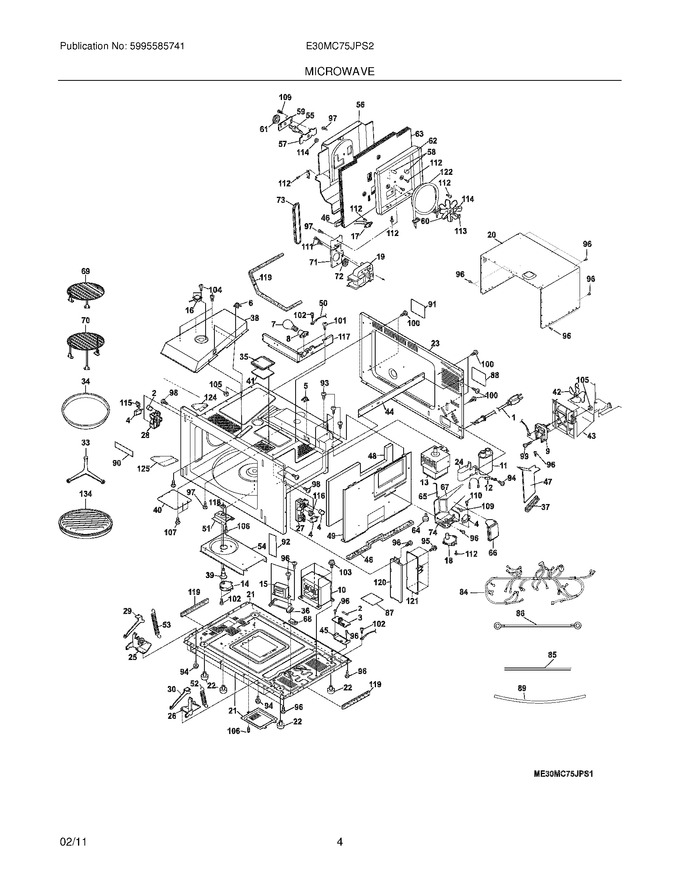

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	5304464198		Lamp,oven Light			Immediately	$ 39.04
20	5304470542		Cabinet,outer Casing				$ 245.24
21	5304470734		Base,chassis ,w/motor Cover		Appelez-nous	-
22	5304461127		Foot,cabinet ,(4)				$ 15.54
23	5304470544		Panel,cabinet Back		Appelez-nous	-
24	5304480637		Holder,capacitor		Appelez-nous	-
25	5304482319		Hinge,lh				$ 105.16
26	5304482320		Hinge,rh				$ 113.56
27	5304470547		Latch Hook,right Side			Immediately	$ 51.32
28	5304470548		Latch Hook,left Side			Immediately	$ 51.03
29	5304480640		Cam,door ,lh				$ 85.30
30	5304480641		Cam,door ,rh			Immediately	$ 116.40
33	5304480642		Support,turntable				$ 143.96
34	5304470563		Tray,turntable ,glass				$ 238.86
35	5304461155		Frame,light Lens		Appelez-nous	-
36	5304470564		Bracket,mounting ,transformer		Appelez-nous	-
37	5304461157		Cushion		Appelez-nous	-
38	5304461158		Duct Assembly,steam Release		Appelez-nous	-
39	5304480644		Coupler,turntable/motor   (Replaces: 5304451450)				$ 138.80
40	5304461165		Cover,waveguide				$ 232.99
41	5304461167		Lens,light		Appelez-nous	-
43	5304461174		Duct,cooling Fan		Appelez-nous	-
44	5304461175		Support,chassis		Appelez-nous	-
45	5304461178		Bracket,noise Filter ,angle		Appelez-nous	-
46	5304461156		Cushion		Appelez-nous	-
47	5304461181		Guide,air ,magnetron		Appelez-nous	-
48	5304461182		Sheet,thermal ,protection		Appelez-nous	-
49	5304461183		Cover,thermal Sheet ,panel		Appelez-nous	-
51	5304451459		Bracket,turntable Mount		Appelez-nous	-
52	5304482321		Spring,door ,rh		Appelez-nous	-
53	5304503732		Spring,door ,lh   (Replaces: 5304480646)				$ 67.49
54	5304470576		Insulator,thermal Barrier		Appelez-nous	-
55	5304480647		Bearing Assembly		Appelez-nous	-
56	5304461147		Plate,thermal Protect ,lh		Appelez-nous	-
57	5304461148		Plate,bearing Mtg		Appelez-nous	-
58	5304461149		Holder,element		Appelez-nous	-
59	5304461150		Plate,bearing Holder		Appelez-nous	-
62	5304480648		Duct Assembly,heater		Appelez-nous	-
63	5304461154		Sheet,thermal Protect ,lh		Appelez-nous	-
64	5304461159		Cam,damper		Appelez-nous	-
65	5304461160		Shaft,damper		Appelez-nous	-
66	5304461161		Door Assembly,damper				$ 73.71
67	5304461162		Duct,damper		Appelez-nous	-
68	5304461163		Cushion		Appelez-nous	-
69	5304461194		Rack Assembly,broiling Trivit ,low		Appelez-nous	-
70	5304461195		Rack Assembly,baking ,high				$ 122.39
71	5304461172		Plate,motor Mtg ,convection		Appelez-nous	-
74	5304461179		Cushion,damper Duct		Appelez-nous	-
87	5304440334		Label,caution-monitor		Appelez-nous	-
88	5304465314		Label,nhw Caution		Appelez-nous	-
90	5304451534		Label,user Caution ,french				$ 3.55
91	5304440333		Label,caution-dhhs		Appelez-nous	-
92	5304471514		Label,menu		Appelez-nous	-
93	5303319636		Screw		Appelez-nous	-
94	5304451550		Screw,4 Mm X 8 Mm		Appelez-nous	-
95	5304502863		Screw,4 Mm X 8 Mm ,silver   (Replaces: 5304451552)				$ 10.85
96	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
97	5304461203		Screw,4mm X 10mm ,(6)		Appelez-nous	-
98	5303319641		Screw				$ 12.76
99	5304461209		Screw,4mm X 25mm ,(2)		Appelez-nous	-
100	5304470587		Screw		Appelez-nous	-
101	5304461215		Screw,4mm X 8mm ,(2)		Appelez-nous	-
102	5304470588		Screw				$ 9.93
103	5304461221		Screw,6mm X 14mm ,(4)		Appelez-nous	-
104	5304470589		Screw		Appelez-nous	-
105	5304470590		Nut,special		Appelez-nous	-
106	5304450253		Screw,4 Mm X 8 Mm				$ 14.89
107	5304461210		Screw,4mm X 6mm ,(3)		Appelez-nous	-
109	5304461204		Screw,4mm X 8mm ,(2)		Appelez-nous	-
110	5304461208		Screw,3mm X 14mm		Appelez-nous	-
111	5304471515		Screw		Appelez-nous	-
112	5304461216		Screw,3mm X 6mm		Appelez-nous	-
113	5304451547		Nut,element ,4 Mm X 3.2 Mm ,(4)		Appelez-nous	-
114	5304461214		Washer		Appelez-nous	-
115	5304470591		Lever,switch Actuator ,left				$ 55.67
116	5304470592		Lever,switch Actuator ,right				$ 46.61
117	5304480654		Guide,air ,rh		Appelez-nous	-
118	5304451470		Packing,silicon				$ 52.05
119	5304482055		Cushion,side		Appelez-nous	-
120	5304470735		Holder,power Board				$ 46.78
124	5304480657		Angle,cavity Support ,upper		Appelez-nous	-
125	5304480658		Angle,cavity Support		Appelez-nous	-
134	5304461261		Rack,bacon				$ 180.03
F1	5304470537		Power Cord,electric				$ 117.12
F10	5304470538		Transformer,power				$ 368.55
F11	5304470539		Capacitor,high Voltage				$ 145.76
F12	5304531883		Rectifier Assembly,high Voltage   (Replaces: 5304480635)				$ 35.67
F121	5304480656		Board,power				$ 345.71
F122	5304474695		Element,heating ,convection		Appelez-nous	-
F13	5304480636		Magnetron				$ 521.26
F14	5304498736		Motor,turntable   (Replaces: 5304461124)				$ 104.62
F15	5304470541		Transformer,low Voltage				$ 225.14
F16	5304461125		Sensor Assembly,ah				$ 150.26
F17	5304461112		Thermistor		Appelez-nous	-
F18	5304461115		Motor,damper				$ 114.12
F19	5304471782		Motor,convection Fan				$ 249.90
F2	5304461109		Assembly,fuse & Switch ,monitor				$ 125.69
F3	5304498734		Filter,noise   (Replaces: 5304461110)			Immediately	$ 51.74
F4	5304493153		Switch,interlock ,door Sensor   (Replaces: 5304440026)			Immediately	$ 83.38
F42	5304461173		Blade,fan				$ 44.65
F5	5304461113		Thermal Cut-out,magnetron				$ 47.48
F50	5304461196		Wiring Harness,thermistor		Appelez-nous	-
F6	5304461114		Thermal Cut-out,convection/oven ,(2)				$ 181.73
F60	5304461151		Fan Blade,convection		Appelez-nous	-
F61	5304471508		Pulley,convection Fan				$ 38.28
F72	5304461152		Pulley,motor ,convection Fan				$ 38.28
F73	5304461177		Belt,convection Fan				$ 84.34
F8	5304463785		Lampholder,socket				$ 43.24
F84	5304471513		Wiring Harness,main		Appelez-nous	-
F85	5304482322		Wire,high Voltage A		Appelez-nous	-
F86	5304461199		Wire,ground ,cooling Fan				$ 25.52
F89	5304480653		Harness,wiring ,psu ,to Cpu				$ 158.05
F9	5304461119		Motor,fan				$ 429.36
