SELECT A DIAGRAM

01 - Cover


03 - Main Top

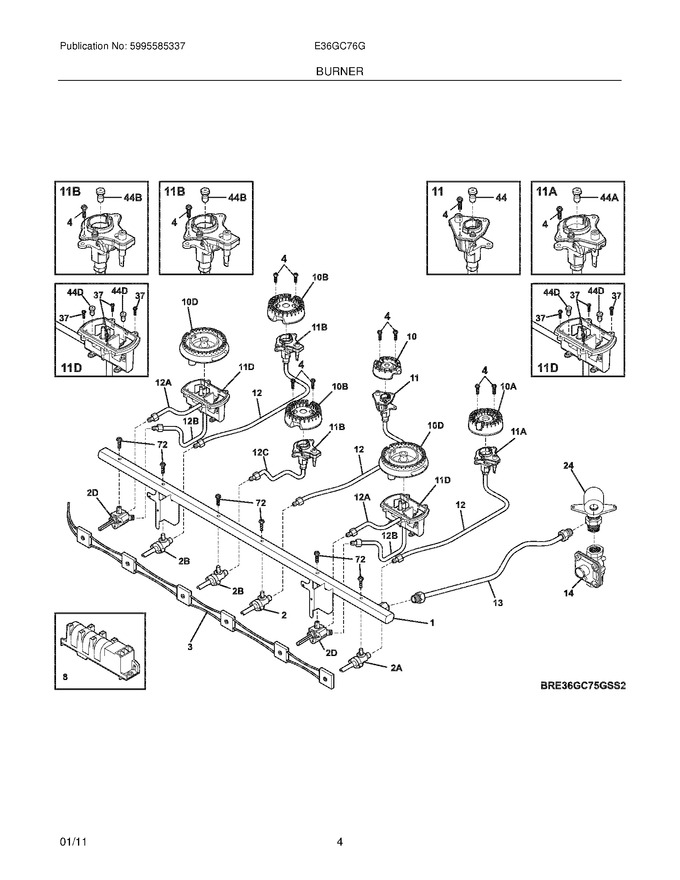

05 - Burner


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
8	808608804		Module,spark   (Replaces: 318079001)			Immediately	$ 76.06
13	318054513		Connector,manifold Tube				$ 51.50
24	318054010		Elbow,fitting				$ 172.23
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
F1	318234314		Manifold Pipe		Appelez-nous	-
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10A	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10D	316525401		Burner,sealed ,dual ,18k				$ 187.54
F11	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11A	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
F11B	316543204		Ignitor/orifice Assy.,top Burner ,14k				$ 12.33
F11D	316525103		Ignitor/orifice Assy.,top Burner ,18k ,w/holder				$ 219.39
F12	318221383		Tubing,5/9.5/14k ,rear ,(3)		Appelez-nous	-
F12A	318221382		Tubing,18k ,(2)				$ 28.61
F12B	318221381		Tubing,18k ,(2)		Appelez-nous	-
F12C	318221384		Tubing,14k ,front		Appelez-nous	-
F14	318122705		Regulator,pressure				$ 120.58
F2	316520700		Valve,burner ,5k				$ 126.87
F2A	316520701		Valve,burner ,9.5k				$ 131.84
F2B	316520703		Valve,burner ,14.2k				$ 146.01
F2D	316574900		Valve,top Burner ,18k Dual				$ 242.16
F3	318232635		Wiring Harness,w/igntr Switch				$ 94.50
F44	316527504		Orifice,top Burner ,5k				$ 22.68
F44A	316527500		Orifice,top Burner ,9.5k				$ 21.40
F44B	316527511		Orifice,top Burner ,14k				$ 19.85
F44D	316523512		Orifice,top Burner ,18k		Appelez-nous	-
FNI	318127450		Lp Conversion Kit		Appelez-nous	-
FNI	318243104		Harness,burner Wiring				$ 183.44
NI	318531900		Clip,(3)		Appelez-nous	-
NI	5303321221		Screw,8-32 X 3/4		Appelez-nous	-
NI	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36

    View Diagram in Separate Window       Print Part List
