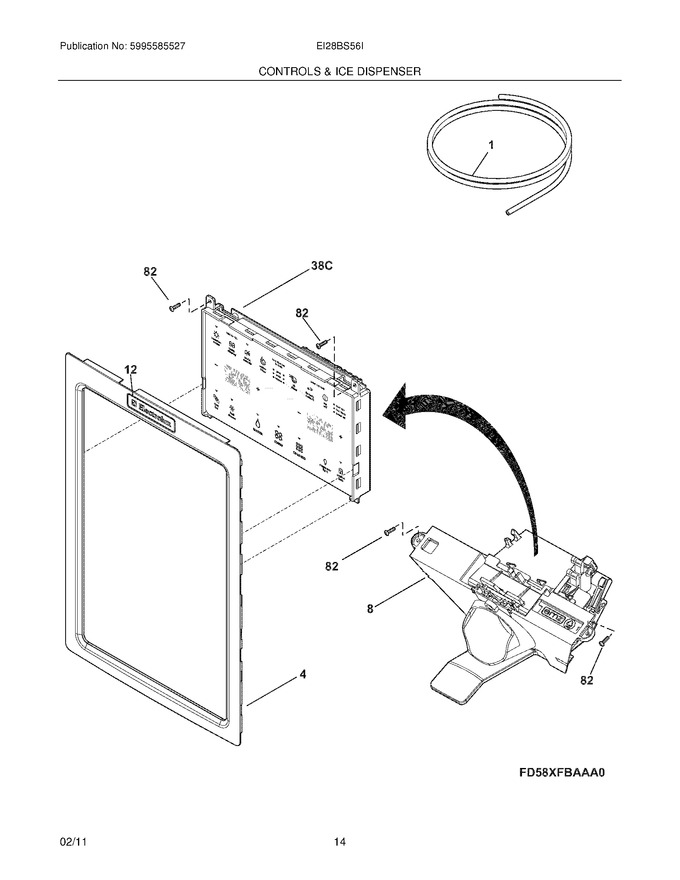

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976424 | Tube-water Inlet,64.00`` ,yellow |
|
$ 20.89 | |||||
| 4 | 241893104 | Cover-module,stainless (Replaces: 241757504) |
|
$ 71.48 | |||||
| 12 | 241873301 | Nameplate,electrolux ,stainless |
|
$ 11.15 | |||||
| 82 | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| F38C | 241836020 | Board-control |
|
- | |||||
| F8 | 242100005 | Module-dispenser,silver |
|
$ 204.99 | |||||
| FNI | 241510904 | Harness-dispenser,grounding |
|
$ 60.96 | |||||
| FNI | 242066501 | Harness-wiring,jumper |
|
$ 136.08 | |||||
| FNI | 242016001 | Harness-wiring,dispenser |
|
$ 69.84 | |||||
| NI | 5303918484 | Chute-ice (Replaces: 242105401) |
|
$ 30.47 | |||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NI | 241965901 | Tube-water,formed ,64.86`` |
|
$ 33.71 | |||||
| NI | 241920101 | Tube-water Inlet,green ,valve To I.m. |
|
$ 46.64 | |||||
| NI | 218976423 | Tube-water Inlet,56.00`` ,brown/tan |
|
$ 16.13 |
