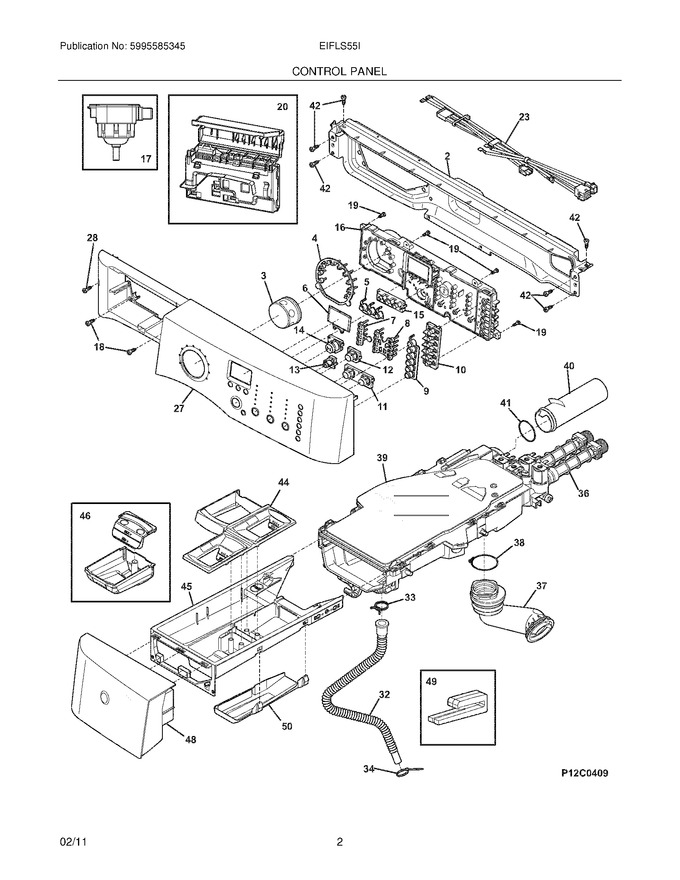

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134887400		Bracket,control Panel ,mounting				$ 92.61
3	134766500		Knob,retracting ,complete Asmy				$ 175.72
4	134907400		Pipe,knob Light				$ 14.56
5	134872100		Ring,display Button ,light		Appelez-nous	-
6	134767700		Lens,lcd				$ 14.89
7	134895900		Pipe,modifer Light ,group 1		Appelez-nous	-
8	134902200		Pipe,modifer Light ,group 2&3		Appelez-nous	-
9	134894200		Ring,option Button ,light		Appelez-nous	-
10	137032300		Button,option		Appelez-nous	-
11	137032200		Button,modifier ,button 2 & 3		Appelez-nous	-
12	137032100		Button,modifier ,button 1		Appelez-nous	-
13	137032000		Button,off		Appelez-nous	-
14	137015900		Button,start/pause				$ 32.42
15	137031900		Button,display				$ 58.12
18	131302800		Screw,quadrex Ph ,10-16ab X 0.5			Immediately	$ 26.58
19	134402900		Screw,phillips ,6-19 X 0.650				$ 29.77
27	137377530		Panel,control Console ,red , Decorated				$ 235.31
28	131302901		Screw,10-16 X 0.750				$ 4.96
32	134625510		Hose,disp-to-bellows				$ 61.37
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	5304464772		Cable Tie,5.60 Inch   (Replaces: 5303321209)				$ 10.63
37	134625700		Hose,disp-to-tub			Immediately	$ 72.72
38	134372400		Clamp,tub Hose				$ 64.49
39	134964020		Housing,dispenser ,valve,cover				$ 282.45
40	134372100		Tube,disp-to-overflo				$ 50.87
41	134372200		O-ring,overflow Tube				$ 13.74
42	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
44	134638310		Drawer Cover,with Graphics				$ 29.66
45	5304505336		Drawer,dispenser   (Replaces: 134638200)			Immediately	$ 59.57
46	137143800		Cup,dispenser ,liquid				$ 27.47
48	137316430		Drawer Assembly,dispenser ,red		Appelez-nous	-
49	137105200		Guide,drawer Console				$ 17.64
50	134638400		Conveyor,dispenser ,lower				$ 22.64
F16	809020007		Control Board,printed Circuit ,with Housing   (Replaces: 134994920)				$ 333.12
F17	134762010		Switch,pressure				$ 42.64
F20	809019910		Control Assembly,main Electronic   (Replaces: 137317221)				$ 313.27
F23	137288900		Harness,wiring ,main				$ 560.54
F36	134637810		Valve Water,dispenser ,no Thermister			Immediately	$ 180.15
NI	134371300		Gasket,disp-to-valve			Immediately	$ 51.04
NI	134178901		Screw,8-18ab X 0.455				$ 14.89
