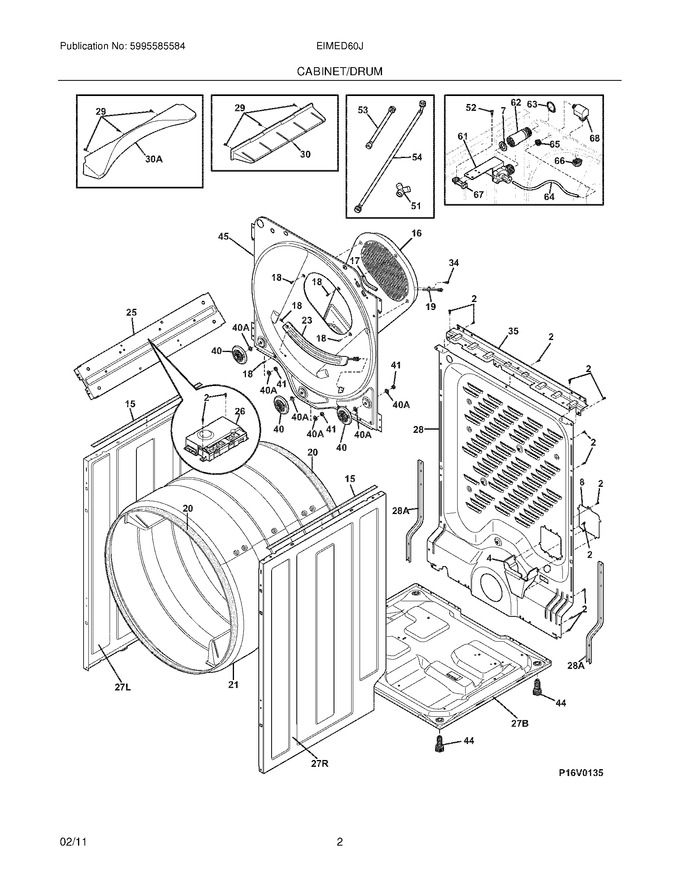

03 - Cabinet/drum


05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	134792100		Bracket,main ,terminal				$ 29.07
7	5303161296		Washer-inlet Hose			Immediately	$ 2,372.96
8	134694400		Cover,terminal Block				$ 72.18
15	137031800		Cushion,vibration ,top Panel			Immediately	$ 8.51
16	5304508449		Duct,heat ,rear   (Replaces: 134694020)			Immediately	$ 108.44
17	134792900		Protector,edge ,right Top Front ,85.0+/-1.5				$ 13.46
18	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
19	134711200		Thermistor,inlet			Immediately	$ 51.03
20	134705900		Seal,felt ,drum				$ 73.45
21	134708210		Drum,dryer ,assembly 38``		Appelez-nous	-
25	137297500		Bracket,mounting ,main Control Bx		Appelez-nous	-
28	134713013		Panel,backsheet		Appelez-nous	-
29	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
30	137033700		Vane,drum		Appelez-nous	-
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	134713100		Bracket,top Panel Mtg. ,rear				$ 70.82
40	5304523155		Roller,wheel ,complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut,3/8-16				$ 2.98
44	134158000		Leveling Leg,screw		Appelez-nous	-
45	134712813		Bulkhead,panel ,rear		Appelez-nous	-
51	5304500709		Fitting,``y`` Hose ,adapter   (Replaces: 137016700)			Immediately	$ 12.56
52	131202300		Screw,10-16ab X 0.625			Immediately	$ 13.46
53	137471800		Hose,water Inlet ,12``   (Replaces: 137016800)				$ 2,372.96
54	5304503984		Hose,water Inlet ,48``   (Replaces: 137016900)				$ 46.07
62	134935400		Adapter,mist Hose		Appelez-nous	-
63	137016500		Ring,retaining ,hose Adapter				$ 7.19
64	137016300		Tube,water Valve To ,valve To Im ,misting Nozzle				$ 78.33
65	137017200		Grommet,misting Tube				$ 3.55
66	5304529773		Nut,nozzle   (Replaces: 137017300)				$ 77.30
67	137017400		Clip,mounting ,water Valve				$ 20.32
68	5304529773		Adapter,water Nozzle ,complete   (Replaces: 137030100)				$ 77.30
27B	134690203		Base,dryer   (Replaces: 134690200)				$ 273.58
27L	134712615		Panel,left Side ,blue		Appelez-nous	-
27R	134712715		Panel,right Side ,blue		Appelez-nous	-
28A	137029800		Bracket,reinforcement ,backsheet		Appelez-nous	-
30A	5304531775		Vane,mixing ,smooth   (Replaces: 137028500)				$ 20.24
40A	134716700		Washer,flat				$ 2.12
F23	134786100		Sensor-moisture,assembly				$ 84.27
F26	809160304		Control Board,printed Circuit ,with Housing   (Replaces: 137249930)			Immediately	$ 311.85
F61	137016600		Valve,water ,mister		Appelez-nous	-
NI	134930800		Harness,moisture Sensor			Immediately	$ 48.44
NI	134716200		Retainer,roller Wheel ,assembly				$ 3.12
NI	5308027429		Adhesive, High Temp			Immediately	$ 60.25
