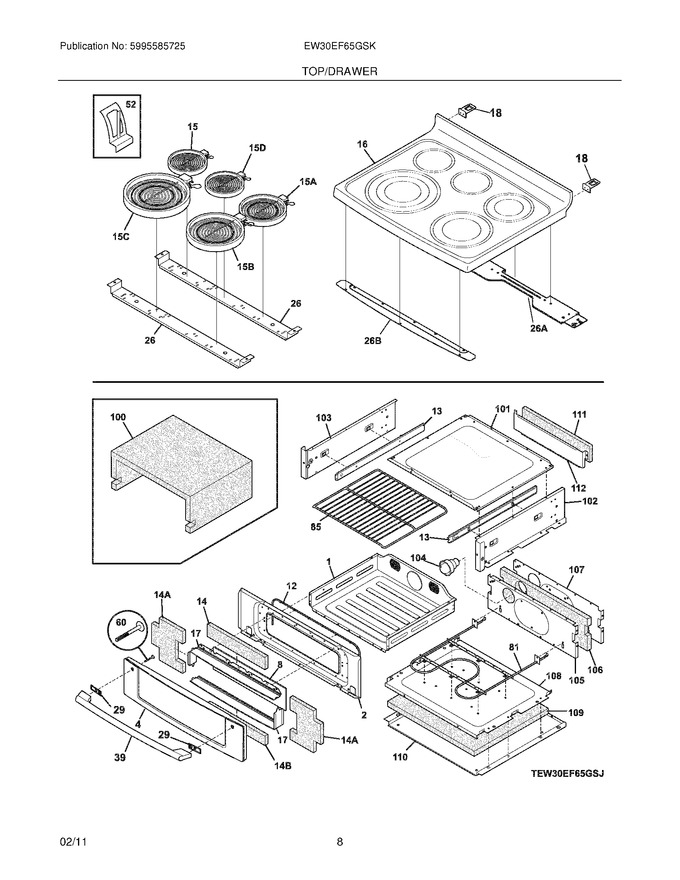

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316414106		Drawer,mini Oven ,cobalt		Appelez-nous	-
2	316510201		Liner,drawer ,cobalt ,mini Oven				$ 60.96
4	316538206		Panel Assembly,drawer Glass ,outer ,w/trim & Tape				$ 285.60
8	316431901		Glass,inner Door ,mini Oven				$ 52.36
12	316410700		Seal,door ,mini Oven				$ 50.35
13	316449801		Glide,drawer ,mini Oven ,(2)				$ 129.51
14	316414202		Insulation,door Top ,mini Oven				$ 12.08
16	316470637		Main Top Assembly,glass/steel ,stainless				$ 1,632.07
17	316508101		Spacer,glass ,(2)				$ 30.66
18	316580800		Bracket-hinge,main Top			Immediately	$ 9.86
26	316427602		Channel,element Support ,(2)		Appelez-nous	-
29	316505401		Spacer,handle ,gray ,(2)				$ 18.17
39	241881301		Handle,door ,stainless				$ 170.06
52	316461700		Clip,element Mtg				$ 12.05
60	5304507924		Screw,handle Mtg ,10-24 X 2.188 ,(2)   (Replaces: 316513301)			Immediately	$ 16.48
85	316411000		Rack,mini Oven				$ 67.15
100	316410900		Insulation,wrapper ,mini Oven		Appelez-nous	-
101	316410201		Panel,top ,mini Oven		Appelez-nous	-
102	316431201		Panel,oven Side ,rh ,mini Oven		Appelez-nous	-
103	316431203		Panel,oven Side ,lh ,mini Oven		Appelez-nous	-
104	316431501		Light Assembly,mini Oven				$ 61.36
105	316431303		Panel,main Back ,mini Oven		Appelez-nous	-
106	316431400		Insualtion,oven Back ,mini Oven		Appelez-nous	-
107	316431307		Shield,main Back ,mini Oven		Appelez-nous	-
108	316410101		Panel,bottom ,mini Oven		Appelez-nous	-
109	316410800		Insulation,floor ,mini Oven		Appelez-nous	-
110	316410400		Shield,floor ,mini Oven		Appelez-nous	-
111	316509601		Insulation,lower Shield		Appelez-nous	-
112	316513700		Shield,upper Rear ,lower ,mini Oven		Appelez-nous	-
14A	316414201		Insulation,door Sides ,mini Oven ,(2)				$ 12.08
14B	316414203		Insulation,door Bottom ,mini Oven				$ 12.02
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
26B	316501501		Bracket,chassis Support ,front				$ 15.33
F15	318178110		Element,surface ,6`` ,1200 ,(2) ,radiant			Immediately	$ 122.86
F15A	318198952		Element,surface ,750/1800w ,dual Radiant   (Replaces: 318198936)			Immediately	$ 250.90
F15B	5304533520		Element-dual,9/6`` ,surface ,3000w ,radiant   (Replaces: 316282000)			Immediately	$ 90.14
F15C	316216703		Element,surface ,triple ,6/9/12``				$ 284.07
F15D	140273621015		Element,surface ,warmer ,100 W   (Replaces: 318198832)			Immediately	$ 35.77
F81	316413902		Element,bake ,mini Oven				$ 166.09
FNI	316510666		Harness-wiring,surface		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
