SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body

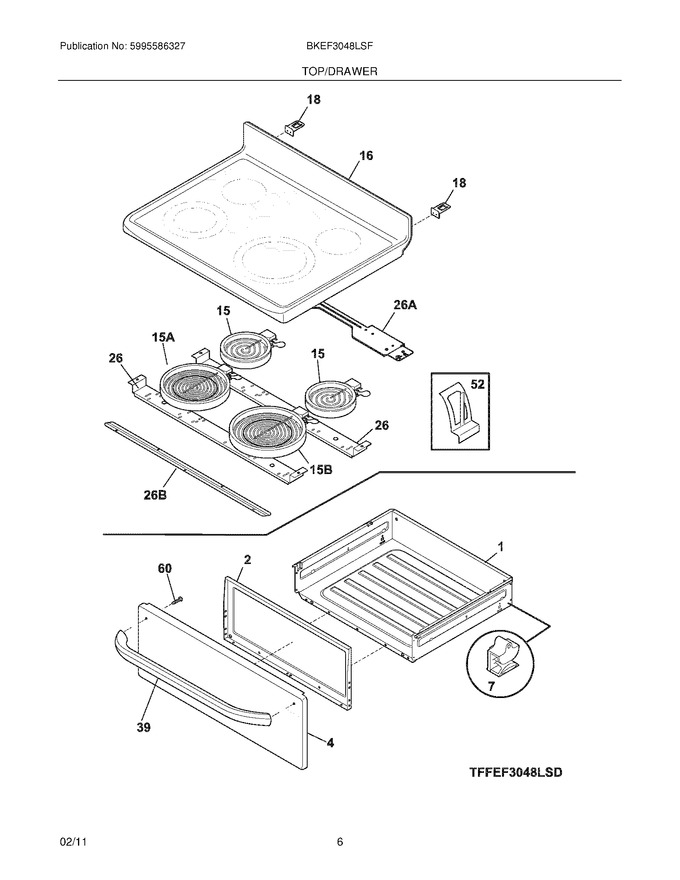

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527989		Liner,drawer   (Replaces: 316403300)				$ 28.83
4	5303935275		Drawer Panel Assy,outer ,stainless ,w/overlay,w/tape				$ 102.59
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316531983		Main,top ,smooth/glass ,black			Immediately	$ 570.90
18	316580800		Bracket-hinge,main Top			Immediately	$ 9.86
26	316427600		Channel,element Support ,(2)		Appelez-nous	-
39	316558201		Handle,door ,stainless   (Replaces: 316558200)				$ 174.23
52	316461700		Clip,element Mtg				$ 12.05
60	5303288572		Screw-handle Mtg		Appelez-nous	-
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
26B	316214202		Bracket,chassis Support ,front				$ 25.41
F15	318178110		Element,surface ,6`` ,1200 ,(2) ,radiant			Immediately	$ 122.86
F15A	316555800		Element,dual ,9``/6`` ,surface ,1300w/1200w,(2) ,radiant			Immediately	$ 138.90
F15B	316291200		Element,surface ,12`` ,2700 W   (Replaces: 318198827)			Immediately	$ 235.31
FNI	316580403		Harness,wiring ,surface Units				$ 3.31
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
