SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - Shelves

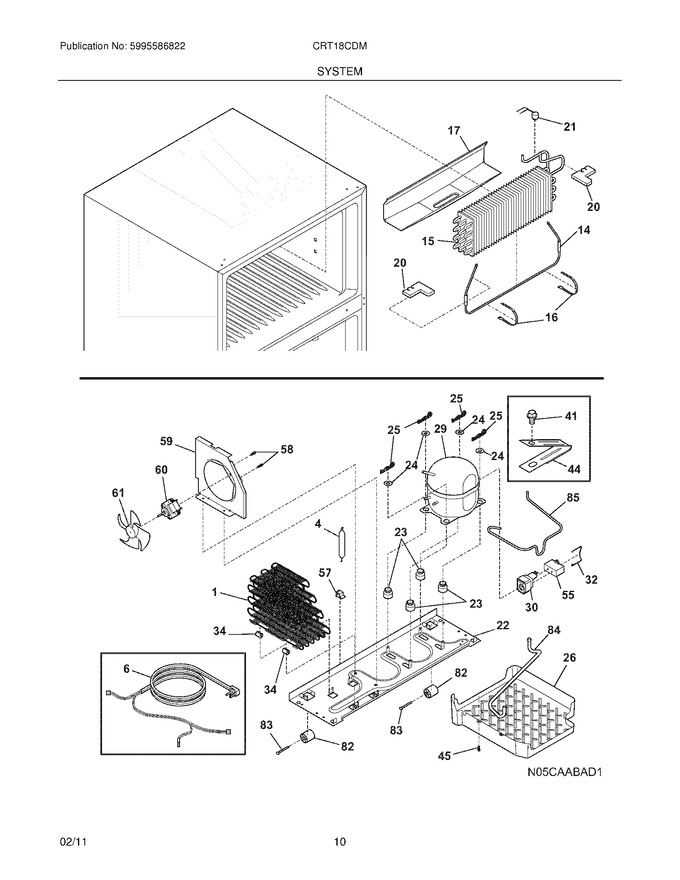

09 - System


12 - Wiring Schematic


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5303305677		Drier-filter,r134a System   (Replaces: 218944002)			Immediately	$ 31.67
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	241801301		Trough-drain				$ 64.46
20	241551902		Insulation Block				$ 11.34
22	241665606		Base-compressor				$ 194.14
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
24	241812301		Washer-compr Mtg				$ 12.89
25	242037701		Clip-compressor Mtg				$ 2.84
26	241920605		Pan-defrost   (Replaces: 241683601)				$ 53.76
32	216649200		Clip,controller				$ 6.30
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
41	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 15.17
44	5304456288		Clamp-wiring Harness,strain Relief ,galv Steel		Appelez-nous	-
45	241500305		Screw,hex Washer Head ,8-18ab X 0.625   (Replaces: 241500304)				$ 3.03
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909913)			Immediately	$ 35.38
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 13.46
59	5303918774		Shroud-cond Fan   (Replaces: 241935601)			Immediately	$ 186.30
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
84	240500801		Tube-drain,rubber ,lower				$ 65.21
85	241879802		Tube-connector (suction)				$ 46.35
F1	241785404		Condenser,dynamic				$ 169.39
F14	242044008		Heater-defrost   (Replaces: 242044020)			Immediately	$ 33.00
F15	5303918492		Evaporator Kit				$ 178.84
F21	5303918202		Thermostat-defrost,kit			Immediately	$ 20.21
F29	240550934		Compressor,w/o Electricals ,w/o Electricals		Appelez-nous	-
F30	241707721		Starter-ptc				$ 85.05
F6	241872701		Harness-wiring,machine Compt   (Replaces: 241607001)				$ 122.62
F60	241696606		Motor-condenser Fan			Immediately	$ 183.81
F61	240524102		Fan Blade,condenser Fan			Immediately	$ 39.43
FNI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	5303918222		Hot Tube Repair Kit,service				$ 418.12
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
NI	240346710		Tape-foam Seal,shroud		Appelez-nous	-
NI	240359403		Screw-fan Shroud,(2)				$ 3.79
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	5303918263		Heat Exchanger Kit,suction Line				$ 461.16
NI	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18

    View Diagram in Separate Window       Print Part List
