SELECT A DIAGRAM

01 - Cover

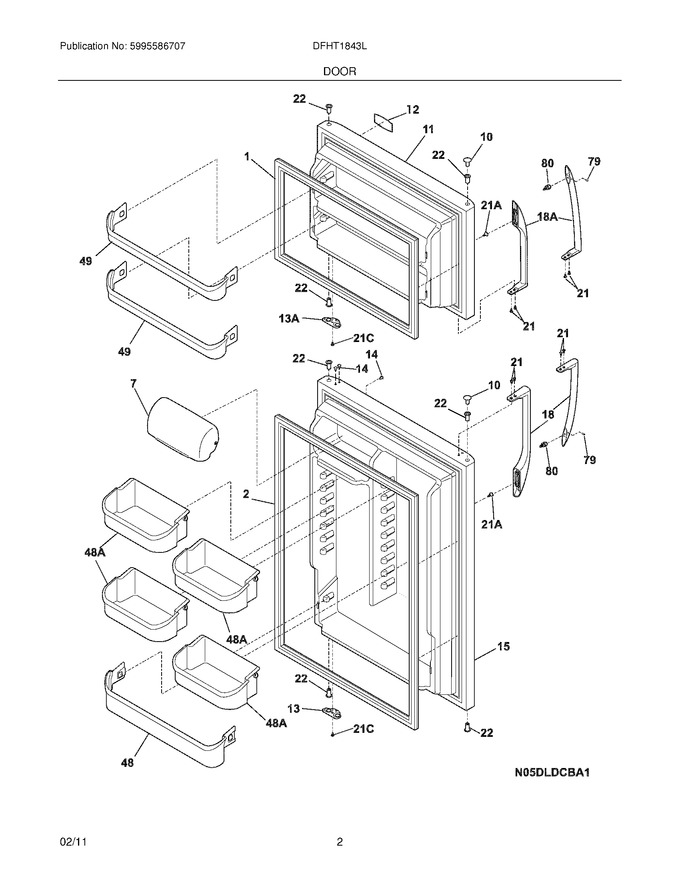

03 - Door


05 - Cabinet


07 - Shelves


09 - System


10 - Wiring Schematic


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241872503		Gasket-frzr Door,white ,magnetic			Immediately	$ 137.66
2	242193213		Gasket-refr Door,white ,magnetic   (Replaces: 241872506)			Immediately	$ 190.22
7	240338313		Door,dairy ,clear			Immediately	$ 80.80
10	240381301		Plug-button,white ,hinge Brg Hole ,(2)			Immediately	$ 18.95
11	240410201		Door-frzr,white ,complete Assy				$ 466.82
12	242016301		Nameplate				$ 4.26
13	240312421		Door Stop,white ,ref   (Replaces: 240312403)				$ 15.17
14	240494001		Plug-button,white			Immediately	$ 18.20
15	240410130		Door-refr,white ,complete Assy				$ 378.44
18	5304506469		Handle-door,white ,refr-rh/frzr-lh   (Replaces: 242059504)			Immediately	$ 69.75
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507146		Bearing-hinge,natural Color   (Replaces: 240527101)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495804		Bin-door,pseudo ,frzr			Immediately	$ 43.29
13A	240312414		Door Stop,white ,frzr				$ 19.13
18A	5304506469		Handle-door,white ,refr-lh/frzr-rh   (Replaces: 242059501)			Immediately	$ 69.75
21A	240521303		Screw,no.10-16 X 1/2			Immediately	$ 30.20
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
48A	241808201		Bin-door,gallon   (Replaces: 240338202)			Immediately	$ 79.97
NI	241701901		Screw Driver		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
