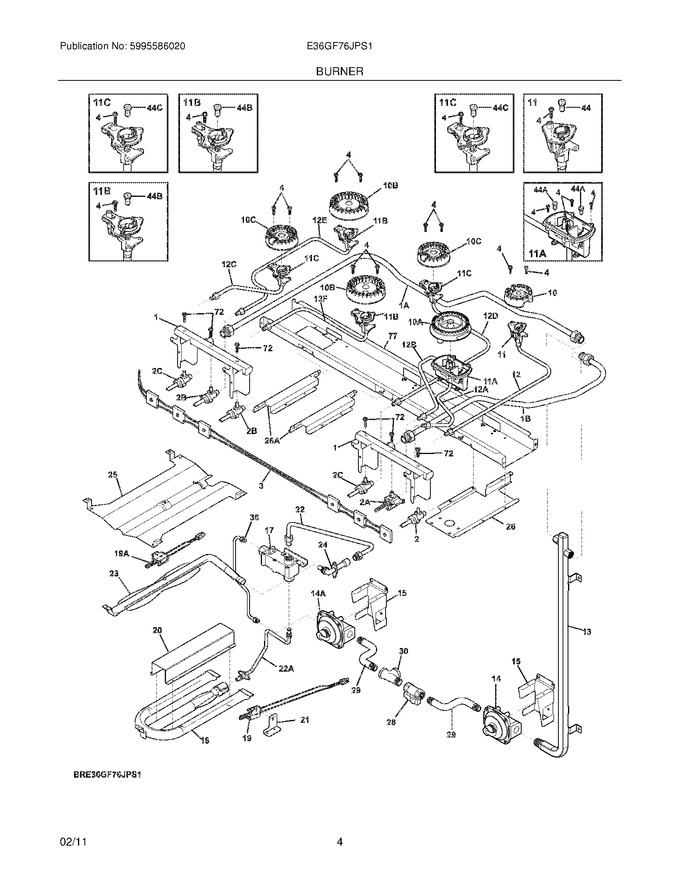

05 - Burner


07 - Body


09 - Main Top


11 - Door


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
15	318376122		Bracket,regulator ,(2)		Appelez-nous	-
20	318583202		Shield,bake Burner		Appelez-nous	-
21	318584602		Bracket,ignitor		Appelez-nous	-
25	316401301		Baffle,broil Burner				$ 173.57
26	318363803		Bracket,channel Mtg		Appelez-nous	-
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
77	318355512		Bracket,channel Mtg.		Appelez-nous	-
26A	318363903		Bracket,channel Mtg.		Appelez-nous	-
F1	318357805		Manifold,(2)				$ 125.84
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10A	316525401		Burner,sealed ,dual ,18k				$ 187.54
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10C	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F11	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11A	316525103		Ignitor/orifice Assy.,top Burner ,18k ,w/holder				$ 219.39
F11B	316543204		Ignitor/orifice Assy.,top Burner ,14k				$ 12.33
F11C	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
F12	318366711		Tube,burner ,rh Rear ,5k		Appelez-nous	-
F12A	318366721		Tube,18k Burner ,rh Front		Appelez-nous	-
F12B	318366720		Tube,18k Burner ,rh Front		Appelez-nous	-
F12C	318366734		Tube,9.5k Burner ,lh Front		Appelez-nous	-
F12D	318366726		Tube,9.5k Burner ,center		Appelez-nous	-
F12E	318366724		Tube,14k Burner ,lh Rear		Appelez-nous	-
F12F	318366725		Tube,14k Burner ,center Front		Appelez-nous	-
F13	318357811		Manifold,regulator		Appelez-nous	-
F14	318122705		Regulator,pressure				$ 120.58
F14A	318122709		Regulator,pressure		Appelez-nous	-
F17	5303210798		Valve-safety			Immediately	$ 587.56
F18	316289100		Burner,bake		Appelez-nous	-
F19	5304534663		Ignitor,oven Burner   (Replaces: 316489400)			Immediately	$ 107.87
F19A	316489401		Ignitor,burner				$ 186.56
F1A	318305453		Tube,manifold ,interconnect				$ 111.48
F1B	318305454		Tube,manifold ,interconnect				$ 102.77
F2	316520700		Valve,burner ,5k				$ 126.87
F22	318305250		Tube,broil Supply		Appelez-nous	-
F22A	316284700		Tube,mixing		Appelez-nous	-
F23	316404304		Burner,broiler				$ 84.39
F24	5304516894		Elbow,mixer   (Replaces: 316409700)				$ 87.21
F28	318087450		Valve,shut Off		Appelez-nous	-
F29	318548602		Tubing,connecting ,regulator ,(2)		Appelez-nous	-
F2A	316574900		Valve,top Burner ,18k Dual				$ 242.16
F2B	316520703		Valve,burner ,14.2k				$ 146.01
F2C	316520701		Valve,burner ,9.5k				$ 131.84
F3	318232647		Wiring Harness,w/igntr Switch				$ 178.82
F30	318548901		Fitting,tubing ,gas Connection		Appelez-nous	-
F36	318177850		Tubing,oven Supply		Appelez-nous	-
F44	316527504		Orifice,top Burner ,5k				$ 22.68
F44A	316523512		Orifice,top Burner ,18k		Appelez-nous	-
F44A	316523509		Orifice,top Burner ,center ,18k				$ 20.69
F44B	316527511		Orifice,top Burner ,14k				$ 19.85
F44C	316527500		Orifice,top Burner ,9.5k				$ 21.40
FNI	318243106		Harness,burner Wiring		Appelez-nous	-
FNI	318186930		Lp Conversion Kit,w/orifice Cap		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304463705		Screw,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	5303323277		Screw (8-18x13/32)				$ 8.66
