SELECT A DIAGRAM

01 - Cover


03 - Freezer Drawer, Baskets

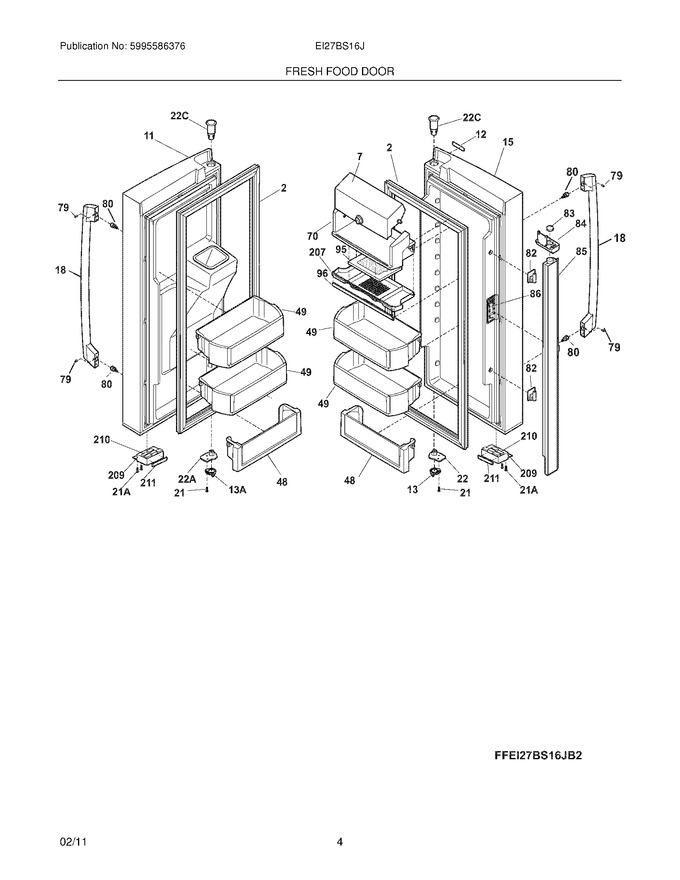

05 - Fresh Food Door


07 - Cabinet


09 - Shelves


11 - System


13 - Controls


15 - Ice Maker


20 - Wiring Diagram Pg 1


21 - Wiring Diagram Pg 2


22 - Wiring Diagram Pg 3


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241778315		Gasket-door,white   (Replaces: 241778301)			Immediately	$ 89.88
7	241895805		Door-dairy   (Replaces: 241804701)				$ 104.18
11	241988063		Door,refr ,stainless Steel ,lh				$ 430.97
12	241873301		Nameplate,electrolux ,stainless				$ 11.15
13	241868401		Door Stop,refrig Rh ,plated				$ 18.43
15	241988062		Door,refr ,stainless Steel ,rh				$ 488.62
18	241881309		Handle-door,stainless				$ 256.62
21	242017501		Screw,10-32 X 0.750				$ 15.60
22	242075601		Cam,upper Hinge ,rh				$ 23.31
48	241804303		Bin-door,can				$ 93.38
49	241804005		Bin-door,gallon				$ 97.55
70	241804604		Compartment-dairy,removable		Appelez-nous	-
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
82	241779401		Hinge-mullion,upper/lower ,flipper			Immediately	$ 21.99
83	241812201		Magnet,door				$ 65.92
84	5303918644		Guide-mullion Flipper   (Replaces: 241779702)				$ 41.44
85	241778808		Flipper Mullion Assembly   (Replaces: 241778801)			Immediately	$ 315.40
86	241779802		Hinge-mullion,center ,flipper   (Replaces: 241779801)			Immediately	$ 36.73
95	EAFCBF		Filter-air   (Replaces: 242047801)			Immediately	$ 27.64
96	242048001		Trim-door Air Filter,w/graphics				$ 43.99
207	242047901		Housing-air Filter				$ 80.39
209	242291001		Housing-magnet,white   (Replaces: 242021001)				$ 20.48
210	241779101		Magnet,door   (Replaces: 241779103)			Immediately	$ 31.19
211	241979601		Bumper,rubber				$ 22.68
13A	241868402		Door Stop,refr Lh ,plated				$ 18.43
21A	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 15.92
22A	242075602		Cam,upper Hinge ,lh				$ 25.02
22C	241760401		Bearing,hinge ,top			Immediately	$ 19.13
F207	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
FNI	240451503		Screw   (Replaces: 242064001)				$ 3.79
FNI	242045401		Harness-wiring,door				$ 51.50
NI	241701902		Screwdriver-3/32`` Balldriver				$ 19.85
NI	241836401		Latch-door				$ 18.43
NI	241836301		Knob-dairy Door				$ 38.98
NI	5304453707		Screw   (Replaces: 241641501)			Immediately	$ 15.92
NI	241788402		Harness-wiring,flipper Mullion		Appelez-nous	-
NI	241891401		Cover-light,led				$ 13.19
NI	242015001		Screw,no.10 8-19 X 1/2			Immediately	$ 16.30
NI	242068601		Bumper,rh Door				$ 14.41
NI	241806601		Connector-water,straight   (Replaces: 242103001)			Immediately	$ 70.56
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
NI	241995401		Divider-dairy Compt,70x				$ 19.13
NI	241601002		Wrench,allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
