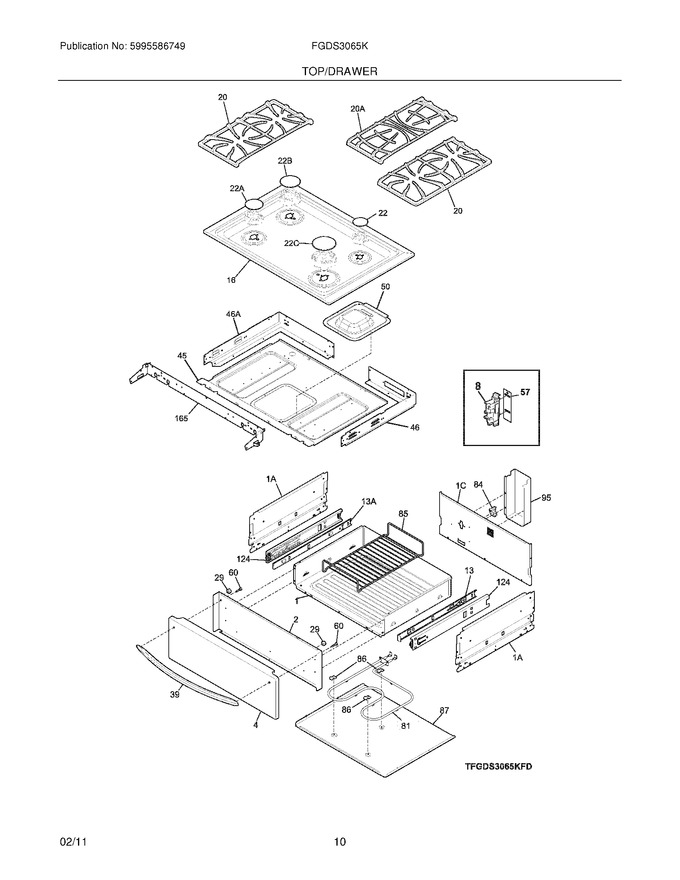

09 - Top/drawer
11 - Door
12 - Wiring Diagram
13 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318304404 | Drawer,body Assembly |
|
$ 195.56 | |||||
| 2 | 318303907 | Panel,drawer ,black ,inner |
|
$ 124.90 | |||||
| 4 | 318299908 | Panel,drawer ,black ,front |
|
$ 117.81 | |||||
| 13 | 318259509 | Glide,warmer ,inner Rh |
|
$ 26.25 | |||||
| 16 | 318569053 | Maintop Assembly,black |
|
$ 274.31 | |||||
| 20 | 318560260 | Grate,burner ,black ,(2) |
|
- | |||||
| 22 | 5304508441 | Cap,5k Burner ,black (Replaces: 316261704) |
|
Immediately | $ 35.04 | ||||
| 29 | 318147430 | Bumper,(2) |
|
$ 18.95 | |||||
| 39 | 318927401 | Handle,door/drawer ,black |
|
$ 189.11 | |||||
| 45 | 318578700 | Panel,burner Box ,bottom |
|
$ 53.81 | |||||
| 46 | 318568200 | Box,burner ,rh |
|
$ 23.99 | |||||
| 50 | 318578801 | Panel,service ,fan |
|
- | |||||
| 57 | 318295611 | Panel,service |
|
$ 15.12 | |||||
| 60 | 5303311174 | Screw, 10-24 X 3/8 |
|
Immediately | $ 14.89 | ||||
| 85 | 807328301 | Rack,warmer Drawer (Replaces: 318345601) |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip,hold Down ,warmer Element |
|
$ 9.93 | |||||
| 87 | 318300102 | Panel,warmer Drawer ,lower |
|
$ 106.22 | |||||
| 95 | 318303800 | Shield,wire |
|
- | |||||
| 124 | 316105501 | Glide,outer/rh & Lh ,(2) |
|
$ 90.72 | |||||
| 165 | 318913300 | Deflector,box ,front |
|
$ 48.67 | |||||
| 13A | 318259508 | Glide,warmer ,inner Lh |
|
$ 27.88 | |||||
| 1A | 318300003 | Panel,warmer Drawer ,side ,(2) |
|
$ 56.13 | |||||
| 1C | 318300301 | Panel,warmer Drawer ,rear |
|
- | |||||
| 20A | 318560470 | Grate,black ,center |
|
$ 290.46 | |||||
| 22A | 5304508442 | Cap,9.5k Burner ,black (Replaces: 316261804) |
|
Immediately | $ 36.55 | ||||
| 22B | 5304508443 | Cap,14k Burner ,black (Replaces: 316262004) |
|
Immediately | $ 46.01 | ||||
| 22C | 5304508468 | Cap,burner ,17k ,black (Replaces: 316262104) |
|
$ 49.45 | |||||
| 46A | 318568201 | Box,burner ,lh |
|
$ 28.93 | |||||
| F8 | 5304505695 | Module,spark (Replaces: 316135702) |
|
Immediately | $ 68.16 | ||||
| F81 | 318255301 | Element,warmer Drawer |
|
$ 105.42 | |||||
| F84 | 318005108 | Thermostat |
|
Immediately | $ 81.14 | ||||
| NI | 5304440988 | Screw,10-16 X 3/4 |
|
- | |||||
| NI | 5304476994 | Screw,8-18 X 1/4 ,(2) ,inner Glide Mtg |
|
- | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303300265 | Screw,8-18 X 1/2 ,(4) |
|
$ 15.17 | |||||
| NI | 5303307980 | Screw,8-32 X 0.437 ,(8) |
|
Immediately | $ 14.18 | ||||
| NI | 134716700 | Washer,flat ,lower (Replaces: 3201909) |
|
$ 2.12 |
