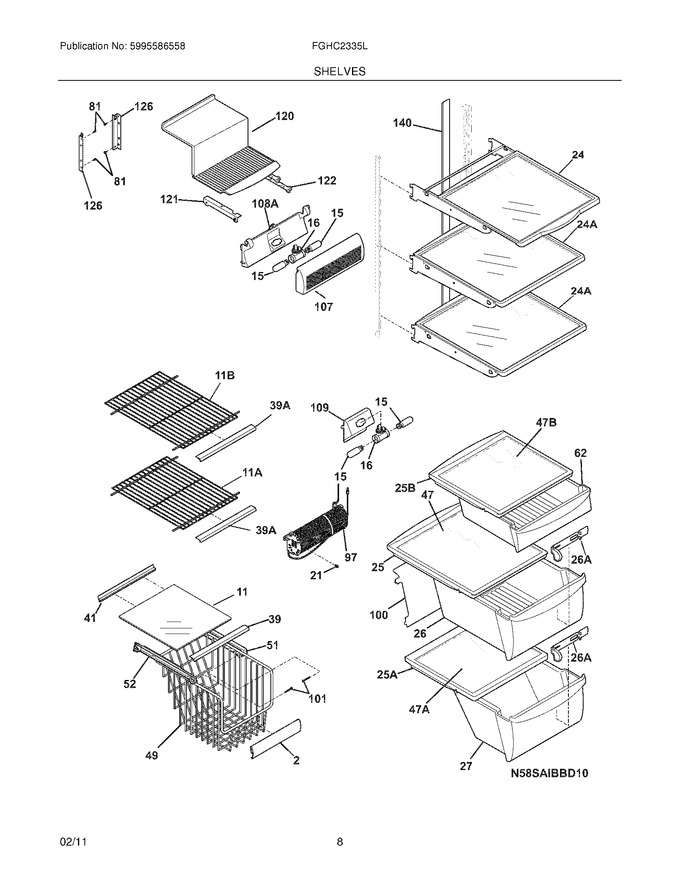

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


22 - Wiring Schematic


23 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510605		Trim-basket		Appelez-nous	-
11	241711213		Shelf-freezer,glass ,lower   (Replaces: 240443357)				$ 86.45
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	241622802		Socket-light,frz Light				$ 65.93
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240350160		Shelf-``spill-safe``,cantilver ,sliding   (Replaces: 240350137)			Immediately	$ 146.36
25	240599301		Cover-crisper Pan,upper			Immediately	$ 94.38
26	240351061		Pan-crisper,upper			Immediately	$ 110.01
27	240351240		Pan-crisper,lower				$ 203.45
39	240367603		Trim-shelf,11.65`` ,front				$ 74.42
41	241571201		Trim-shelf,rear		Appelez-nous	-
47	240350649		Insert-pan Cover,glass			Immediately	$ 123.89
49	241515001		Basket-sliding				$ 188.19
51	241514501		Hanger-basket,rh				$ 73.71
52	241514601		Hanger-basket,lh				$ 76.55
62	241974604		Pan-meat   (Replaces: 241974601)				$ 131.60
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	242220510		Water Tank   (Replaces: 241532007)				$ 119.78
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
107	241753601		Shield-light,upper				$ 30.91
109	241513202		Base-crisper Light Socket				$ 65.21
120	241691701		Shelf-ice Cream				$ 74.42
121	241504701		Rail-ice Cream Shelf,lh				$ 64.49
122	241504702		Rail-ice Cream Shelf,rh				$ 75.08
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
140	241812502		Channel,wtr Tube Cover				$ 76.97
11A	241657505		Shelf-freezer,fixed Wire				$ 72.66
11B	241657506		Shelf-freezer,fixed Wire		Appelez-nous	-
24A	240355260		Shelf-``spill-safe``,fixed		Appelez-nous	-
25A	240350903		Cover-crisper Pan,lower			Immediately	$ 91.99
25B	240599803		Frame-deli Cover,upper			Immediately	$ 90.55
26A	240362201		Control-humidity				$ 69.46
39A	240430710		Trim-shelf,12.86`` ,front				$ 62.79
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
47B	240443391		Insert-pan Cover,glass			Immediately	$ 123.62
F108	241753701		Housing-light,upper ,fresh Food				$ 22.58
NI	242028560		Energy Guide		Appelez-nous	-
NI	241595202		Clip-slide,pan-crisper				$ 18.20
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	241987601		Harness-wiring				$ 113.76
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 240570304)				$ 31.36
NI	240349801		Clip-slide,pan-crisper				$ 20.48
