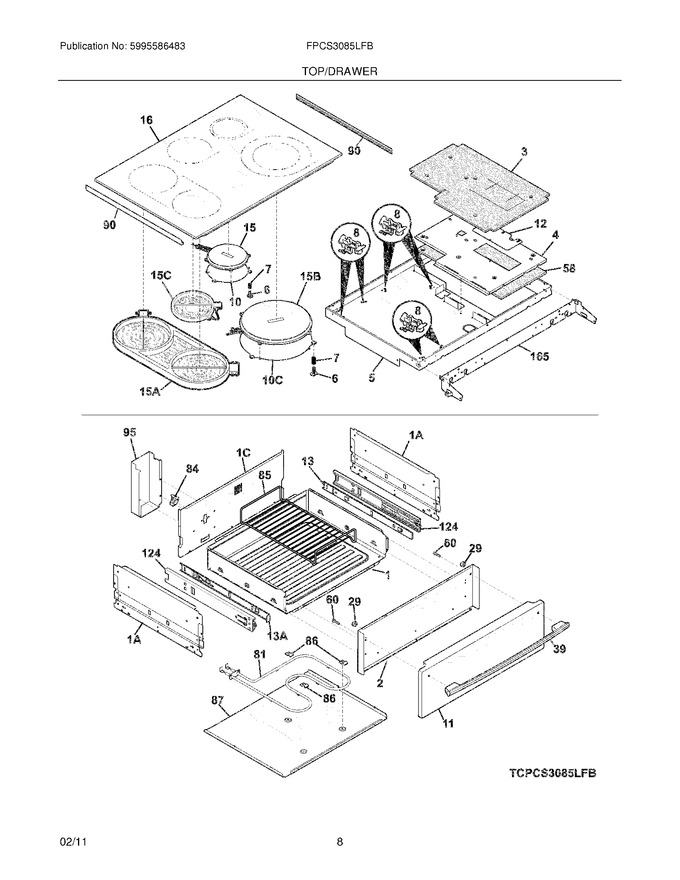

07 - Top/drawer


09 - Door


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304404		Drawer,body Assembly				$ 195.56
2	318303907		Panel,drawer ,black ,inner				$ 124.90
3	318330538		Insulation,carrier Panel		Appelez-nous	-
4	318567306		Support,element		Appelez-nous	-
5	318405112		Panel,mounting		Appelez-nous	-
6	318405000		Pin,guide ,elements ,(6)				$ 19.38
7	318534300		Spring,guide Pin ,(6)				$ 7.09
8	318574500		Spring,radiant Heater		Appelez-nous	-
10	318330405		Panel,coil Support ,145mm				$ 59.41
11	318298829		Panel,drawer ,stainless ,front   (Replaces: 318298826)				$ 210.92
12	318577900		Shield,emi		Appelez-nous	-
13	318259509		Glide,warmer ,inner Rh				$ 26.25
16	318578400		Maintop Assembly,glass ,black ,w/brackets				$ 341.88
29	318147430		Bumper,(2)				$ 18.95
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 112.88
58	318330539		Insulation,service Panel		Appelez-nous	-
60	5304472906		Screw,handle Mtg ,no.10-24 X 1.5 ,(2)				$ 8.98
85	807328301		Rack,warmer Drawer   (Replaces: 318345601)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318300102		Panel,warmer Drawer ,lower				$ 106.22
90	318368001		Channel,glass Protector ,(2)				$ 22.98
95	318303800		Shield,wire		Appelez-nous	-
124	316105501		Glide,outer/rh & Lh ,(2)				$ 90.72
165	318913300		Deflector,box ,front				$ 48.67
10C	318330408		Panel,coil Support ,260mm				$ 136.50
13A	318259508		Glide,warmer ,inner Lh				$ 27.88
1A	318300003		Panel,warmer Drawer ,side ,(2)				$ 56.13
1C	318300301		Panel,warmer Drawer ,rear		Appelez-nous	-
F15	318329210		Element,induction Coil ,145mm ,rh Rear		Appelez-nous	-
F15A	318258203		Element,bridge ,1800/2600			Immediately	$ 371.39
F15B	318329214		Element,induction Coil ,260mm ,rh Front				$ 687.41
F15C	318198843		Element,surface ,warm Zone ,100w ,radiant				$ 206.01
F81	318255301		Element,warmer Drawer				$ 105.42
F84	318005108		Thermostat			Immediately	$ 81.14
FNI	318228968		Harness,wiring ,cooktop		Appelez-nous	-
FNI	318402385		Harness,wiring ,alimentation				$ 41.35
FNI	318532141		Ground Wire,5.5``		Appelez-nous	-
NI	318341500		Clamp,cord		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5304476994		Screw,8-18 X 1/4 ,(2) ,inner Glide Mtg		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
