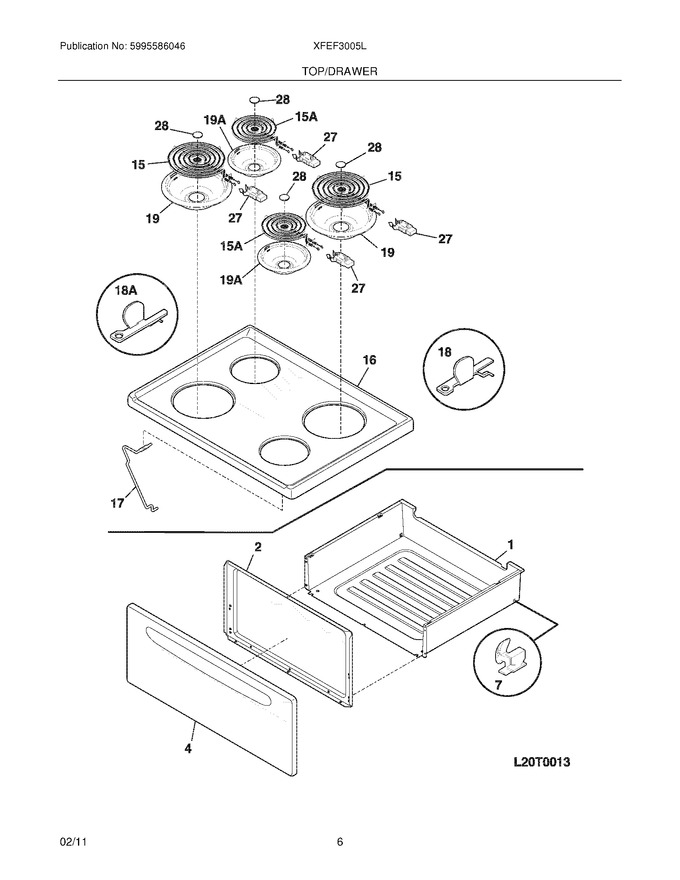

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304511288		Liner,drawer   (Replaces: 316284800)				$ 57.64
4	316231309		Panel-drawer,bisque				$ 78.25
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316245405		Main Top,bisque		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
F15	3051450		Element,surface ,8`` Large		Appelez-nous	-
F15A	3051449		Element,surface ,6`` Small		Appelez-nous	-
F19	316048413		Pan-surface Element,chrome ,large/8 Inch			Immediately	$ 9.85
F19A	316048414		Pan-surface Element,chrome ,small/6 Inch			Immediately	$ 16.11
FNI	316580408		Harness,wiring ,surface Units		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5308014215		Screw`6-20 X 0.312				$ 2.28

    View Diagram in Separate Window       Print Part List
