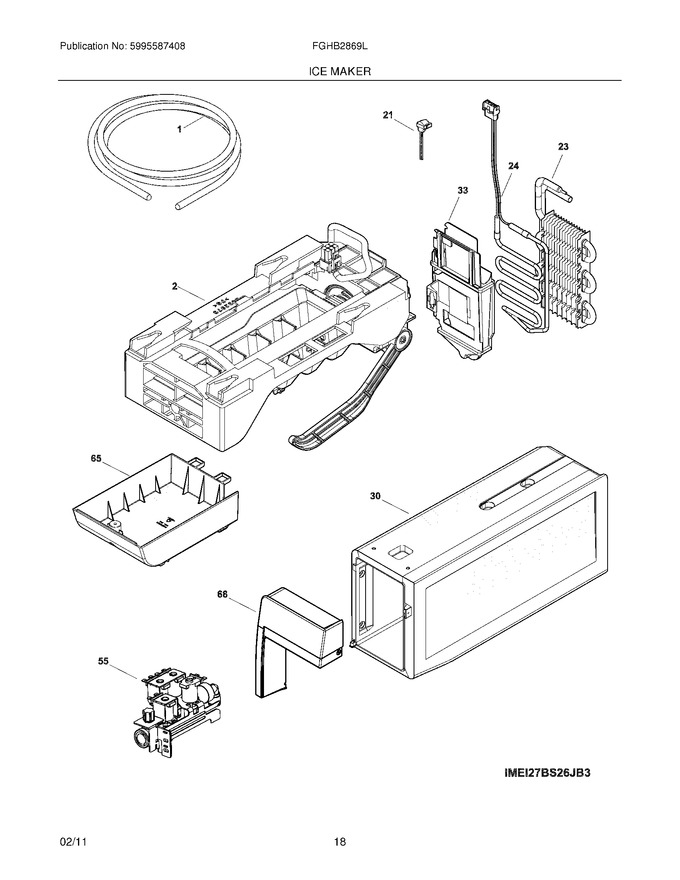

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976424		Tube-water,64.00`` ,yellow				$ 20.89
2	243297613		Ice Maker,complete ,115 V   (Replaces: 243297603)			Immediately	$ 117.66
23	5303918567		Evaporator Kit			Immediately	$ 309.58
30	242093501		Cover,icmkr & Bucket   (Replaces: 242142201)				$ 168.69
33	242094401		Housing-evaporator				$ 6.39
65	242094301		Cover-wiring				$ 33.85
68	242095001		Cover-front,bucket Trim		Appelez-nous	-
F21	5303918568		Thermostat-defrost,defrost ,icemaker Evap				$ 91.43
F24	242094802		Heater-defrost   (Replaces: 242094801)			Immediately	$ 113.92
F55	242253002		Valve-water,4 Position ,115 V   (Replaces: 242102201)			Immediately	$ 244.75
FNI	5303918446		Heat Exchanger,icemaker				$ 401.86
NI	241695906		Screw,10-16ab X 0.50				$ 19.13
NI	242095406		Gasket			Immediately	$ 18.17
NI	5303918784		Gasket   (Replaces: 242095407)			Immediately	$ 122.75
NI	5303918784		Gasket   (Replaces: 242124801)			Immediately	$ 122.75
NI	5303918784		Gasket   (Replaces: 242124802)			Immediately	$ 122.75
NI	5303918784		Gasket   (Replaces: 242146001)			Immediately	$ 122.75
NI	242220204		Tube-water,brown/tan   (Replaces: 218976432)			Immediately	$ 40.32
NI	5303918784		Gasket-evap Housing   (Replaces: 242095401)			Immediately	$ 122.75
NI	242095402		Gasket-evap Housing,.250x.250x3.300		Appelez-nous	-
NI	242095403		Gasket-evap Housing,.250x.250x7.750		Appelez-nous	-
NI	5303918784		Gasket-evap Housing,.250x.250x5.250   (Replaces: 242095404)			Immediately	$ 122.75
NI	242095405		Gasket-evap Housing,.250x.250x6.600		Appelez-nous	-
NI	218709101		Screw,hex Head ,10-32 X 0.500				$ 6.38
NI	240363602		Screw-shoulder				$ 13.65
NI	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	241641502		Screw				$ 8.51
NI	5303918571		Tube-water,ice Mold Fill ,black ,extension   (Replaces: 241844403)				$ 164.24
NI	241806601		Connector-water,straight   (Replaces: 242103001)			Immediately	$ 70.56
NI	5303918484		Chute-ice   (Replaces: 242105401)				$ 30.47
NI	242041805		Tube-water,ice Mold Fill ,w/extension		Appelez-nous	-
NI	5303918571		Kit-water Fill Chute				$ 164.24
NI	242082103		Tube-water				$ 22.68
NI	242220204		Tube-water   (Replaces: 242082104)			Immediately	$ 40.32
NI	241965901		Tube-water,formed ,64.86``				$ 33.71
NI	241518001		Nut,1/2-20 ,nylon ,water Hose ,(2)				$ 23.86
NI	218976812		Tube-water Inlet,valve To I.m.		Appelez-nous	-
