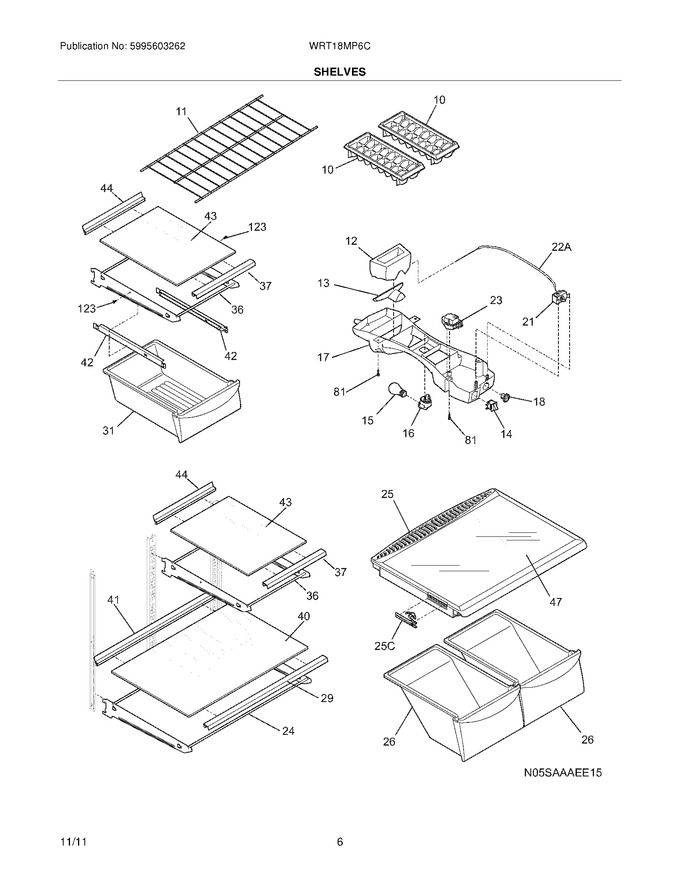

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray,ice Cube ,plastic			Immediately	$ 6.07
11	240358005		Shelf,freezer ,full-width ,wire		Appelez-nous	-
12	241542001		Diffuser,air ,top			Immediately	$ 74.42
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
17	240352702		Control Box				$ 56.91
18	240360801		Knob-temp Control				$ 43.95
24	240373102		Frame-full Shelf,cantilever		Appelez-nous	-
25	240364746		Cover-crisper Pan				$ 166.50
26	240337103		Pan-crisper,clear ,(2) ,no Graphics			Immediately	$ 148.35
29	240357701		Trim-shelf,24.48`` ,front				$ 70.82
31	240530811		Pan-meat,w/o Graphics ,clear			Immediately	$ 135.77
36	241616607		Frame-half Shelf,cantilever   (Replaces: 240373103)				$ 146.81
37	240357702		Trim-shelf,11.95`` ,front				$ 63.80
40	240443910		Glass-shelf,full Shelf		Appelez-nous	-
41	240357801		Trim-shelf,24.48`` ,rear				$ 56.12
42	240530601		Track,meat Pan Hanger ,lh			Immediately	$ 65.98
42	240530701		Track,meat Pan Hanger ,rh			Immediately	$ 65.98
43	240443913		Glass-shelf,half Shelf		Appelez-nous	-
44	240357802		Trim-shelf,11.95`` ,rear				$ 50.76
47	241711222		Insert-pan Cover,glass		Appelez-nous	-
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 14.89
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
25C	241613502		Control-humidity,lh				$ 47.78
F14	241554901		Switch-light/lamp				$ 70.88
F15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
F16	241559801		Socket-light				$ 72.68
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 72.31
F23	215846604		Timer-defrost   (Replaces: 241809401)			Immediately	$ 24.58
FNI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	240568606		Seal   (Replaces: 240568607)				$ 12.76
NI	241619926		Label-energyguide,energy Guide		Appelez-nous	-
NI	5304455649		Screw,pan Hd ,6-20 X 0.438				$ 17.01
