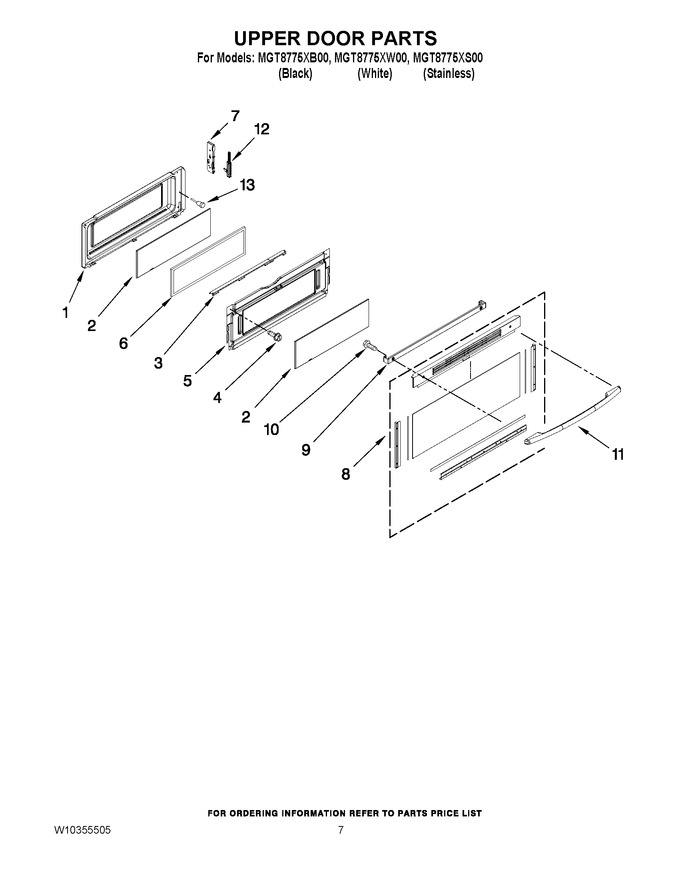

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10206315		Lining, Door		Appelez-nous	-
2	W11132120		Glass, Inner (2)   (Replaces: W10272707)				$ 153.71
3	WPW10272708		Frame, Glass   (Replaces: W10272708)				$ 147.37
4	WPW10292297		Screw W/washer   (Replaces: W10292297)			Immediately	$ 6.47
5	W10272706		Retainer, Insul.		Appelez-nous	-
6	WPW10321271		Insulation, Door   (Replaces: W10321271)				$ 85.01
7	W10647259		Receiver   (Replaces: W10277006)			Immediately	$ 8.39
8	W10273126		Assembly, Glass Door (stainless (stainless Incl. Door Panel))		Appelez-nous	-
8	W10322718		Assembly, Glass Door (white)		Appelez-nous	-
8	W10322720		Assembly, Glass Door (black)		Appelez-nous	-
9	WPW10294695		Bracket, Handle   (Replaces: W10294695)				$ 126.02
10	WPW10317886		Screw, Handle   (Replaces: W10317886)			Immediately	$ 6.98
11	WPW10161708		Handle, Door (stainless)   (Replaces: W10161708)				$ 319.73
11	W10323584		Handle, Door (black)				$ 175.78
11	W10323581		Handle, Door (white)				$ 178.21
12	W10274499		Hinge, Door (right)				$ 66.03
12	W10274500		Hinge, Door (left)				$ 66.34
13	4448520		Bumper, Door				$ 19.07
