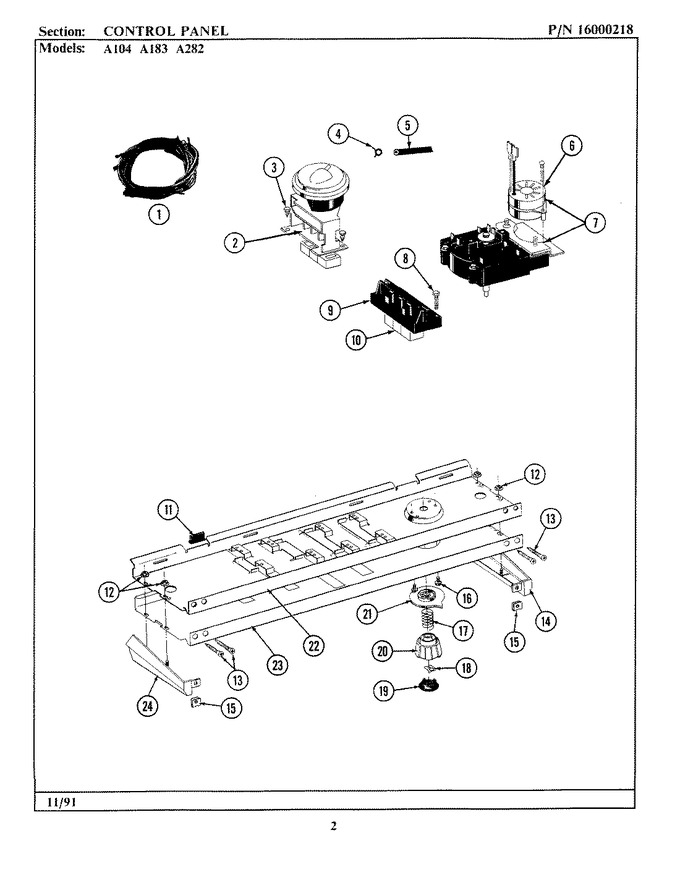

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 206239 | Wire Harness | 00 |
|
- | ||||
| 2 | 206513 | Water Level Control Switch | 00 |
|
- | ||||
| 3 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 4 | WP596669 | Clamp,water Level Swtch Tube (Replaces: 410296) | 00 |
|
Immediately | $ 7.56 | |||
| 5 | WP22001619 | Air Dome And Tube (Replaces: 212942) | 00 |
|
$ 75.73 | ||||
| 6 | 205033 | Timer Motor 120-60 | 00 |
|
- | ||||
| 7 | 206686 | Timer | 00 |
|
$ 193.64 | ||||
| 8 | WP67006908 | Screw-temp. Switch To Panel (Replaces: 213117) | 00 |
|
Immediately | $ 7.16 | |||
| 9 | 206216 | Water Temperature Switch | 00 |
|
- | ||||
| 10 | 215211 | Button For Switch | 00 |
|
- | ||||
| 11 | 214897 | Pad, Control Panel | 00 |
|
- | ||||
| 12 | 214872 | Palnut, End Cap | 00 |
|
- | ||||
| 13 | 210932 | Screw, No.8 X 9/16 Ctsk | 00 |
|
- | ||||
| 14 | 214816 | End Cap F/control Panel-rh | 00 |
|
- | ||||
| 15 | 214894 | Fastener, End Cap | 00 |
|
- | ||||
| 16 | WP3400014 | Screw-timer To Control Pane (Replaces: 213966) | 00 |
|
$ 6.98 | ||||
| 17 | 211065 | Spring, Timer Knob | 00 |
|
$ 5.70 | ||||
| 18 | 211605 | Retainer, Timer Knob | 00 |
|
- | ||||
| 19 | 214806 | Cap For Timer Knob | 00 |
|
- | ||||
| 20 | 215162 | Timer Knob | 00 |
|
- | ||||
| 21 | 215161 | Timer Dial Indicator | 00 |
|
- | ||||
| 22 | 214818 | Back Up Plate | 00 |
|
- | ||||
| 23 | 206570 | Control Panel | 00 |
|
- | ||||
| 24 | 214815 | End Cap F/control Panel-lh | 00 |
|
- |
