02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

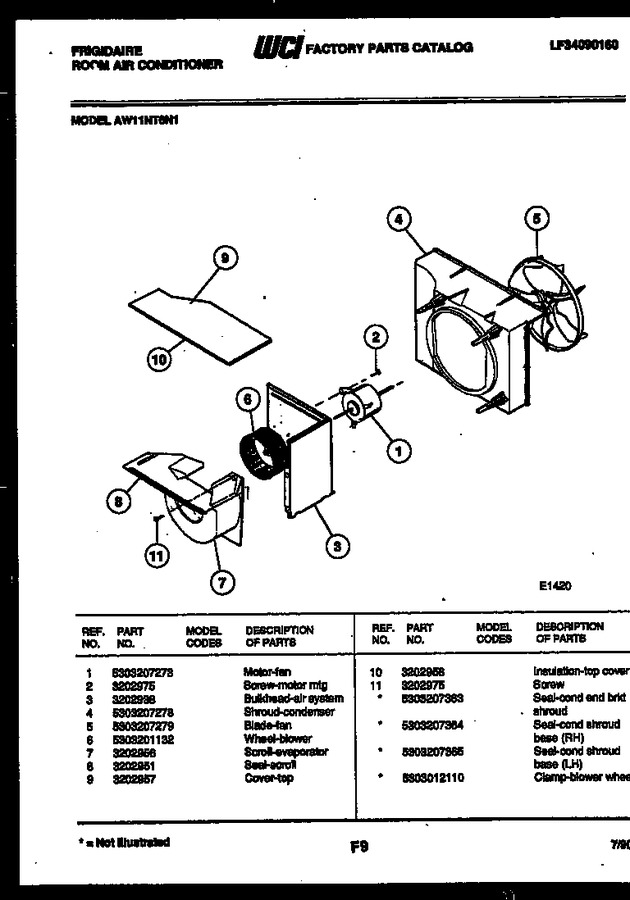

| 1 | 5303207273 | Motor-fan |
|
- | |||||
| 2 | 3202975 | Screw - Motor Mtg |
|
- | |||||
| 3 | 3202938 | Bulkhead-air System |
|
- | |||||
| 4 | 5303207278 | Shroud - Condenser |
|
- | |||||
| 5 | 5303207279 | Blade - Fan |
|
- | |||||
| 6 | 5303201132 | Wheel - Blower |
|
- | |||||
| 7 | 3202956 | Scroll-evaporator |
|
- | |||||
| 8 | 3202951 | Seal-scroll |
|
- | |||||
| 9 | 3202957 | Cover-top |
|
- | |||||
| 10 | 3202958 | Insulation-top Cover |
|
- | |||||
| 11 | 3202975 | Screw |
|
- | |||||
| *32656 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| *32656 | 5303207365 | Seal-cond Shroud Base (lh) |
|
- | |||||
| *32656 | 5303207364 | Seal-cond Shroud Base (rh) |
|
- | |||||
| *32656 | 5303207363 | Seal-cond End Brkt Shroud |
|
- |
