01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Drawer & Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)

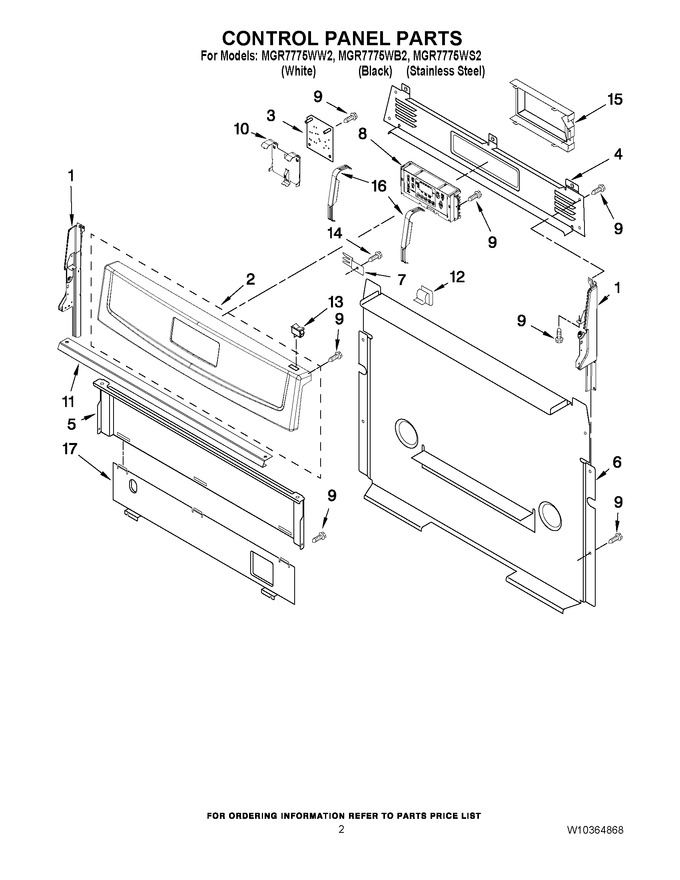

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap, Left Hand (black)   (Replaces: W10184437)				$ 131.85
1	W11219370		Endcap, Right Hand (white)   (Replaces: W10184434)				$ 52.14
1	W11219665		Endcap, Right Hand (black)   (Replaces: W10184438)				$ 36.40
1	W11219365		Endcap, Left Hand (white)   (Replaces: W10184433)				$ 36.39
2	W10292034		Panel, Control (white)		Appelez-nous	-
2	W10292035		Panel, Control (black)		Appelez-nous	-
2	W10292036		Panel, Control (stainless Model)		Appelez-nous	-
3	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 354.47
4	W10198745		Cover, Upper				$ 110.48
5	W10192841		Shield, Heat				$ 91.45
6	W10184251		Cover, Back		Appelez-nous	-
7	8523412		Bracket, Support				$ 143.91
8	W10271780		Control, Range (black)		Appelez-nous	-
8	W10271779		Control, Range (white)		Appelez-nous	-
9	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
10	W10516463		Brkt-mntg, Dsi   (Replaces: W10137524)		Appelez-nous	-
11	W10211996		Brkt-mntg,console		Appelez-nous	-
12	WP8273564		Clip   (Replaces: 8273564)				$ 10.85
13	WP4314961		Switch-rocker (black)   (Replaces: 3148564)				$ 80.53
13	3149360		Switch-rocker (white)				$ 89.01
14	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
15	W10158780		Cover				$ 101.56
16	W11230932		Bracket, Eoc Mount   (Replaces: W10138683)			Immediately	$ 72.69
17	8053505		Shield, Lower Heat				$ 142.19
