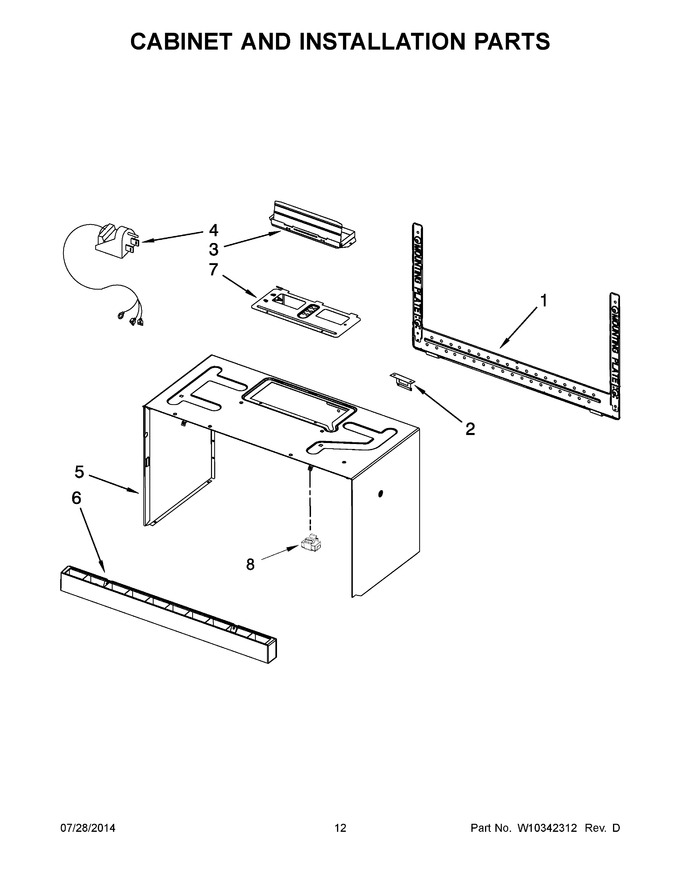

07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10245177) |
|
Immediately | $ 21.16 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 31.89 | |||||
| 3 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10269470) |
|
$ 18.48 | |||||
| 5 | WPW10244765 | Case, Outer (white) (Replaces: W10244765) |
|
$ 198.23 | |||||
| 6 | W10286825 | Grille, Vent (white) |
|
$ 120.16 | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 8 | W10107810 | Mounting Nut |
|
- | |||||
| 5A | WPW10245176 | Case, Outer (black) (Replaces: W10245176) |
|
$ 198.23 | |||||
| 5B | W10251166 | Case, Outer (biscuit) |
|
- | |||||
| 6A | W10286828 | Grille, Vent (black) |
|
$ 105.26 | |||||
| 6B | W10286829 | Grille, Vent (biscuit) |
|
- | |||||
| 6C | W10259232 | Grille, Vent (stainless) |
|
Immediately | $ 144.91 | ||||
| NI | 8205948 | Miscellaneous Parts, Installation, Hardware |
|
$ 23.06 | |||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper |
|
Immediately | $ 6.47 | ||||
| NI | WP8169704 | Miscellaneous Parts, 1/4-20x3" Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| NI | W10553850 | Miscellaneous Parts, Main Harness (Replaces: W10342989) |
|
$ 161.34 | |||||
| NI | W10539840 | Miscellaneous Parts, Ground Wire To Connect Pcb (Replaces: 8205696) |
|
$ 21.50 | |||||
| NI | W10107760 | Miscellaneous Parts, Ground Wire, Filter (for Stainless Model Only) |
|
- | |||||
| NI | W10245226 | Miscellaneous Parts, Harness, Headlamp And Turntable |
|
- |
